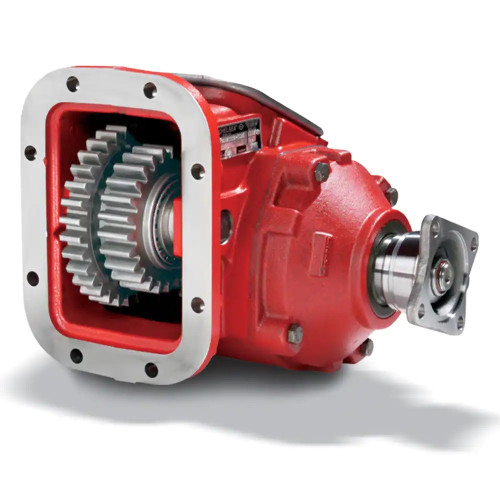

Chelsea part number 885XBAKX-A6XV or 885XBAKXA6XV is an 885 Series Power Take-Off built for heavy-duty applications on 8-bolt PTO aperture transmissions. It uses hydraulic PowerShift engagement and is compatible with Eaton/Fuller, Allison, Volvo/Mack, and other transmission manufacturers. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. Intermittent torque rating for the 885 Series reaches up to 500 lb-ft (678 Nm); check application pages for actual ratings confirmed to your unit. Shaft power delivery measures 48 HP at 500 RPM and 95 HP at 1,000 RPM. The cast iron housing and heavy-duty ball bearings on the output shaft are built to handle oil field, bulk transporter, and fire and rescue service cycles. Call us to confirm proper fit for your transmission and application.
The Chelsea 885 Series is designed for high-torque vocational applications including oil field service, bulk transporter trucks, and fire and rescue. The 885 Series supports continuous operation with a 30% de-rating. Parker Chelsea publishes an owner's manual (272/282/852/885 Series), an 885 Series Parts List (HY25-2885-M1_US), and dedicated sales literature for this series. The Electric Overspeed Control (EOC) option is available within the 885 Series product family.
Features
8-bolt mounting for compatibility with Eaton/Fuller, Allison, Volvo/Mack, and other heavy-duty transmissions
Hydraulic PowerShift (PowerShift) engagement
1-1/2"-10T spline output shaft with 1410 companion flange
Intermittent torque capacity up to 500 lb-ft (678 Nm) for the 885 Series - verify actual rating for your application
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Rugged cast iron housing with pressure lubrication available
Tech Specs
- Intermittent Torque: 401-500 lb-ft / 501+ Nm; series rating up to 500 lb-ft (678 Nm) - check application pages for actual torque ratings
- Shift Type: Hydraulic PowerShift
- Output Power: 56+ HP (51+ kW)
- Transmission Compatibility: Eaton/Fuller, Allison, Volvo/Mack, Other
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP at 500 RPM / 95 HP at 1,000 RPM (36 kW at 500 RPM / 71 kW at 1,000 RPM)
Additional Information
The Chelsea 885 Series is designed for high-torque vocational applications including oil field service, bulk transporter trucks, and fire and rescue. The 885 Series supports continuous operation with a 30% de-rating. Parker Chelsea publishes an owner's manual (272/282/852/885 Series), an 885 Series Parts List (HY25-2885-M1_US), and dedicated sales literature for this series. The Electric Overspeed Control (EOC) option is available within the 885 Series product family.
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
