Chelsea PTO 885 Series Parts Manual
Parts List Bill of Materials 885 Series

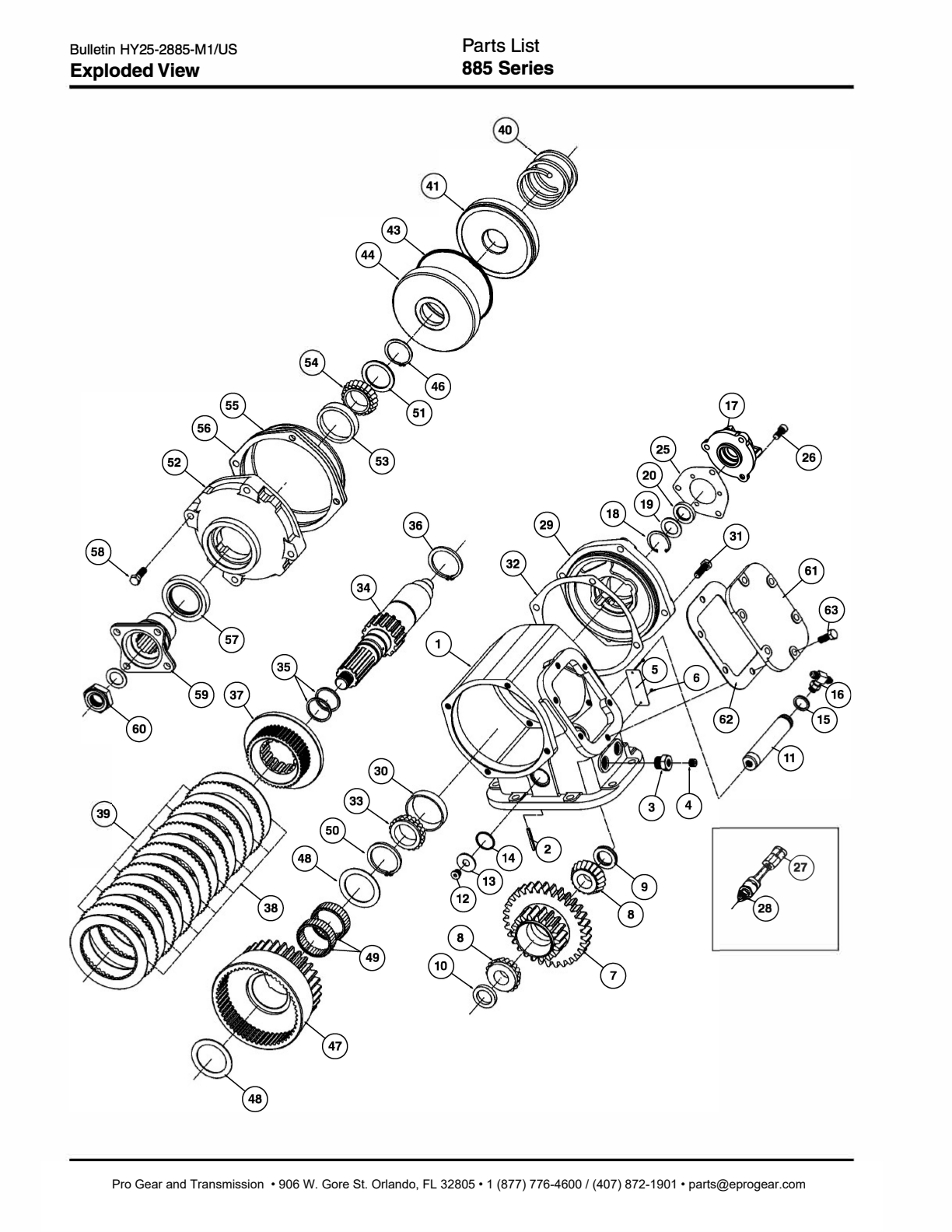

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P528X | Pto Housing, Standard Mount (includes Item 2) | 1 | $910.67 | Add to Cart | |
| 2 | 50059716 | Slotted Roll Pin (included With Item 1) | 1 | $1.18 | Add to Cart | |
| 3 | 379242 | O-ring Boss Plug (1 Req'd W/eoc) | 2 | $22.23 | Add to Cart | |
| 4 | 379231 | Pipe Plug (.125"-27 Nptf) (1 Req'd W/eoc) | 2 | $1.50 | Add to Cart | |
| 5 | 68P2 | Name Plate | 1 | $2.65 | Add to Cart | |
| 6 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 8 | 560987 | Tapered Bearing Cone (m Ratio) Input Bearing Spacer | 2 | $131.13 | Add to Cart | |
| 14P801 | Bearing Adjusting Spacer (.110"-.112") | AIR | $15.00 | Add to Cart | ||
| 14P802 | Bearing Adjusting Spacer (.115"-.117") | AIR | $15.00 | Add to Cart | ||
| 14P803 | Bearing Adjusting Spacer (.120"-.122") | AIR | $15.00 | Add to Cart | ||
| 14P804 | Bearing Adjusting Spacer (.124"-.126") | AIR | $15.00 | Add to Cart | ||
| 10 | 14P81 | Input Bearing Spacer | 1 | $7.03 | Add to Cart | |
| 11 | 9P79 | Idler Shaft (x Lube Option) | 1 or | $260.42 | Add to Cart | |
| 9P80 | Idler Shaft (p Lube Option) | 1 | $307.40 | Add to Cart | ||
| 12 | 379484 | Straight Threaded Connector | 1 | $6.85 | Add to Cart | |
| 13 | 379505 | O-ring Retainer | 1 | $4.86 | Add to Cart | |
| 14 | 28P42 | O-ring (-023) | 1 | $3.59 | Add to Cart | |
| 15 | 28P198 | O-ring (-117) | 1 | $7.10 | Add to Cart | |
| 16 | 379556 | Run Tee, O-ring Boss | 1 | $90.82 | Add to Cart | |
| 21P644X | Cap And Seal Assembly (includes 17-20) | 1 | $801.85 | Add to Cart | ||
| 17 | 21P644 | Bearing Cap | 1 | $314.70 | Add to Cart | |
| 18 | 378849 | Retaining Ring | 1 | $2.12 | Add to Cart | |
| 19 | 378811 | Washer | 1 | $5.21 | Add to Cart | |
| 20 | 28P179 | Oil Seal (1 .379" X .875" X .249") | 1 | $88.26 | Add to Cart | |
| 25 | 22P112 | Valve Cap Gasket | 1 | $20.18 | Add to Cart | |
| 26 | 3784476 | Hex Head Capscrew (.312"-18 X 1 .000") | 2 | $4.33 | Add to Cart | |
| 27 | 379243 | Speed Sensor W/eoc | 1 | $229.65 | Add to Cart | |
| 28 | 28P171 | O-ring W/eoc Bearing Cap (rear Side) | 1 | $4.88 | Add to Cart | |
| 21P552 | Bearing Cap Ass'y 4 & 6. | 1 or | $645.58 | Add to Cart | ||
| 21P588 | Bearing Cap Ass'y 3 & 5. | 1 | $849.14 | Add to Cart | ||
| 30 | 560982 | Tapered Bearing Cup | 1 | $19.83 | Add to Cart | |
| 31 | 37843118 | Hex Head Capscrew .375"-16 X 2 .000" | 4 | $7.13 | Add to Cart | |
| 32 | 22P98 | Bearing Cap Gasket Air As Required Continued On Next - | 1 | $9.45 | Add to Cart | |
| 33 | 560986 | Tapered Bearing Cone ( •ab & Xv Output) | 1 | $31.81 | Add to Cart | |
| 560976 | Tapered Bearing Cone (xs Output) (•xv | $29.24 | Add to Cart | |||
| 560985 | Tapered Bearing Cone Output) | $408.28 | Add to Cart | |||
| 34 | 329314X | Drive Shaft & Clutch Ass'y (see Page 11 For Options) (includes Items 35-46) | — | Call for availability | ||
| 35 | 28P194 | O-ring | 2 | $12.24 | Add to Cart | |
| 36 | 379465 | Lockring | $2.57 | Add to Cart | ||
| 37 | 2P844 | Inner Clutch Gear Assembly | $108.04 | Add to Cart | ||
| 38 | 379489 | Clutch Plate (friction) | 8 | $17.94 | Add to Cart | |
| 39 | 379776 | Clutch Plate (steel) | 7 | $17.85 | Add to Cart | |
| 40 | 37P24 | Spring | 1 | $12.29 | Add to Cart | |
| 41 | 379821 | Piston Clutch | $155.20 | Add to Cart | ||
| 43 | 28P260 | O-ring Piston | 1 | $56.79 | Add to Cart | |
| 44 | 379820 | Backup Cylinder | $669.69 | Add to Cart | ||
| 46 | 379532 | Lockring (xv) | 1 | $5.98 | Add to Cart | |
| 48 | 31P92 | Thrust Washer | 2 | $19.07 | Add to Cart | |
| 49 | 560975 | Caged Roller Bearing | 2 | $176.63 | Add to Cart | |
| 50 | 379511 | Lockring | 1 | $5.91 | Add to Cart | |
| 51 | 4P76 | Drive Shaft Spacer. | $36.38 | Add to Cart | ||
| 4P170 | Drive Shaft Spacer (xs Only Ass'y 3 & 5) Bearing Cap Ass 'y (output Side) | 1 | $49.60 | Add to Cart | ||
| 21P584 | Bearing Cap Ass'y 3 & 5 (•ab & Xv Output) ( •ab & Xv Output P Lube) | 1 | $1,386.81 | Add to Cart | ||
| 21P517 | Bearing Cap Ass'y 4 & 6 (•ab & Xv Output) | 1 | $492.66 | Add to Cart | ||
| 21P515 | Bearing Cap Ass'y 4 & 6 (xs Output Only) | $690.71 | Add to Cart | |||
| 21P586 | Bearing Cap Ass'y 3 & 5 (xs Output Only) | 1 | $1,207.75 | Add to Cart | ||
| 21P544 | Bearing Cap Ass'y 4 & 6 (xs Output P Lube) | $683.71 | Add to Cart | |||
| 21P645 | Bearing Cap Ass'y 3 & 5 (xs Output P Lube) | — | No longer available — call for replacement | |||
| 21P541 | Bearing Cap Ass'y 4 & 6 (•xv Output Only) | 1 | $625.14 | Add to Cart | ||
| 21P596 | Bearing Cap Ass'y 4 & 6 ( •ab & Xv Output P Lube) Tapered Bearing Cup | 1 | $402.73 | Add to Cart | ||
| 560977 | Tapered Bearing Cup (xs Output) (•xv | 1 or | $14.27 | Add to Cart | ||
| 560984 | Tapered Bearing Cup Output) | 1 or | $408.26 | Add to Cart | ||
| 560982 | Tapered Bearing Cup (•ab & Xv Output) Tapered Bearing Cone | 1 | $19.83 | Add to Cart | ||
| 560986 | Tapered Bearing Cone (•ab & Xv Output) | 1 or | $31.81 | Add to Cart | ||
| 55 | 28P196 | O-ring (-258) Shim Bearing Cover | 1 | $60.36 | Add to Cart | |
| 55P201 | Shim Bearing Cover ( .003 " Green) | AIR | $5.92 | Add to Cart | ||
| 55P202 | Shim Bearing Cover ( .010" Brown) | AIR | $7.74 | Add to Cart | ||
| 55P203 | Shim Bearing Cover (yellow) | AIR | $17.66 | Add to Cart | ||
| 57 | 28P211 | Oil Seal (•ab & Xv Output) | 1 or | $35.18 | Add to Cart | |
| 28P267 | Oil Seal ( •xy Output) | 1 or | $66.05 | Add to Cart | ||
| 28P219 | Oil Seal (xs Output) Air As Required Continued On Next - Per 2018 Chelsea Suggested List Price. | 1 | $28.20 | Add to Cart | ||
| 58 | 37843111 | Hex Head Capscrew ( .375"-16 X 1 .125") | 4 | $2.01 | Add to Cart | |
| 59 | 313431 | Flange (1410 Series) (xv Output Only) | 1 | — | Call for availability | |
| 379558 | Flange (din 120 Series) ( •ab Output) | 1 | $698.00 | Add to Cart | ||
| 60 | 380486X | Locknut ( •ab & Xv Output Only) With Washer Required | 1 | $60.21 | Add to Cart | |
| 61 | 34P16 | Cover | 1 | $32.41 | Superseded by 34P314Add to Cart | |
| 62 | 35P69 | Gasket | 1 | $5.70 | Add to Cart | |
| 63 | 378431CR6 | Hex Head Capscrew ( .375"-16 X .625") | 6 | $3.90 | Add to Cart | |
| 50036526 | Flat Washer (used With Item 63) | 6 | $2.11 | Add to Cart | ||
| 3795642 | Shipping Cap (p Lube Only) | 2 | $1.23 | Add to Cart | ||
| 379097 | Inspection Tag Pipe Plug/shipping Plug | 1 | — | Call for availability | ||
| 379231 | Pipe Plug ( .125"-27 Nptf) (x Lube Option) (1 Required W/eoc) | 1 | $1.50 | Add to Cart | ||
| 5008975 | Shipping Plug (p Lube Option) | 1 | — | Call for availability | ||
| 32894817X | Gasket & Installation Instructions Stud Kits | 1 | $46.81 | Add to Cart | ||
| 328170179X | Stud Kit (standard Mount) | 1 or | $66.13 | Add to Cart | ||
| 328170201 | X Stud Kit (metric Mount) Installation Kits | 1 | — | Call for availability | ||
| 32838850X | 12V Installation Kit W/o Eoc | 1 | $765.12 | Add to Cart | ||
| 32838851X | 24V Installation Kit W/o Eoc | 1 | $757.14 | Add to Cart | ||
| 32838852X | 12V Installation Kit W/eoc | 1 | $1,482.82 | Add to Cart | ||
| 32838853X | 24V Installation Kit W/eoc | 1 | $997.51 | Add to Cart | ||
| 32838871X | Installation Kit (v Option) | 1 | $506.55 | Add to Cart | ||
| 32838899X | Installation Kit (a Option) | 1 | $610.25 | Add to Cart | ||
| 329650X | 12V & 24V Control Box W/eoc Hose Assembly Kits | 1 | $1,358.05 | Add to Cart | ||
| 329228X | Pressure Lube Mounting Kit (p Lube Only) | 1 | — | Call for availability | ||
| 3291291X | Pressure Lube Hose (36" Long From End To End) (p Lube Only) | 1 | $123.32 | Add to Cart | ||
| 3291301X | Pressure Lube Hose (16 .0"-15 .5" Long From End To End) (p Lube Only) | 1 | $87.33 | Add to Cart | ||
| 3291303X | Pressure Lube Hose (20 .0"-20 .5" Long From End To End) (p Lube Only) Air As Required - Per 2018 Chelsea Suggested List Price. | 1 | $93.75 | Add to Cart |

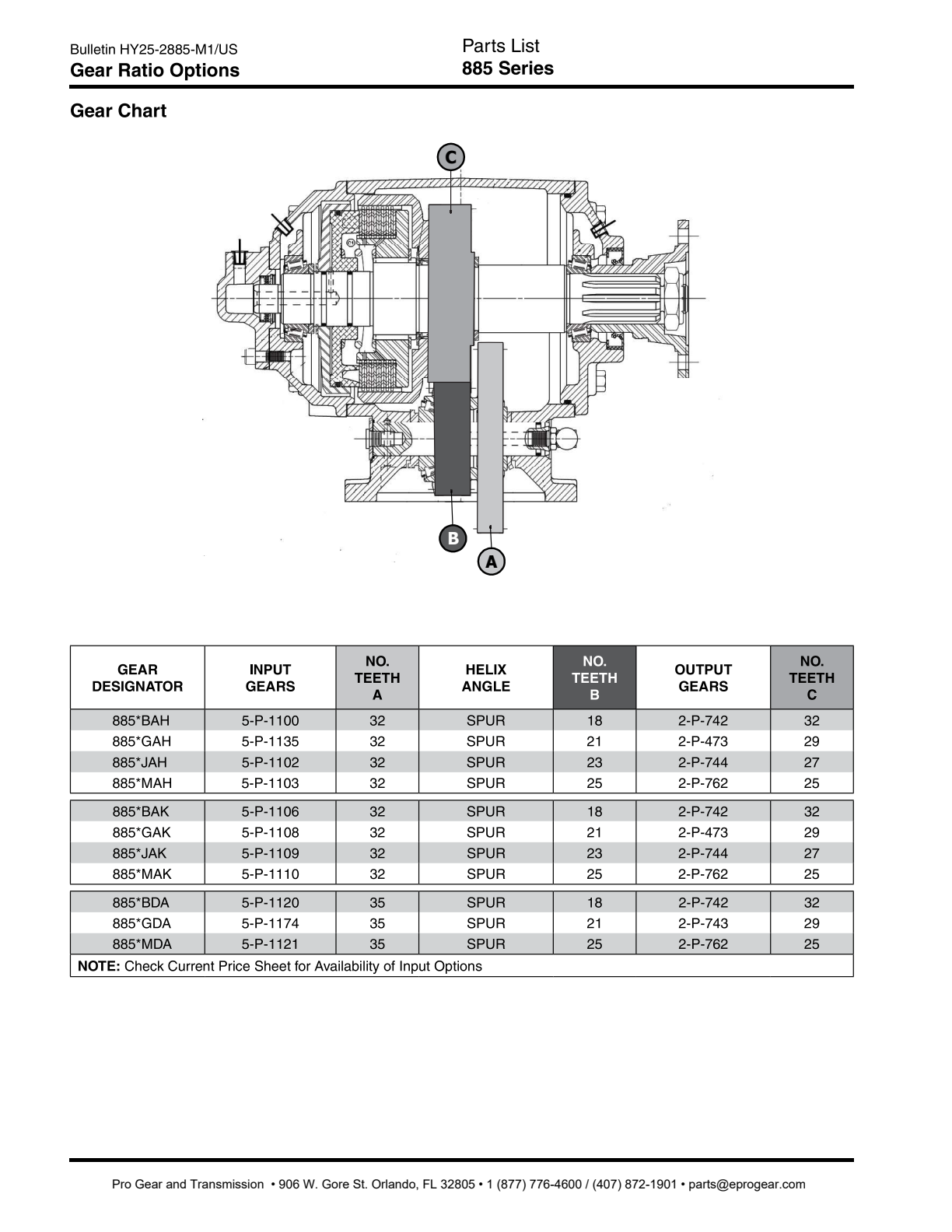

Lube Options 885 Series Pressure Lubrication Hose Plumbing (SK-336 Rev C) & XV Output XS Output
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|

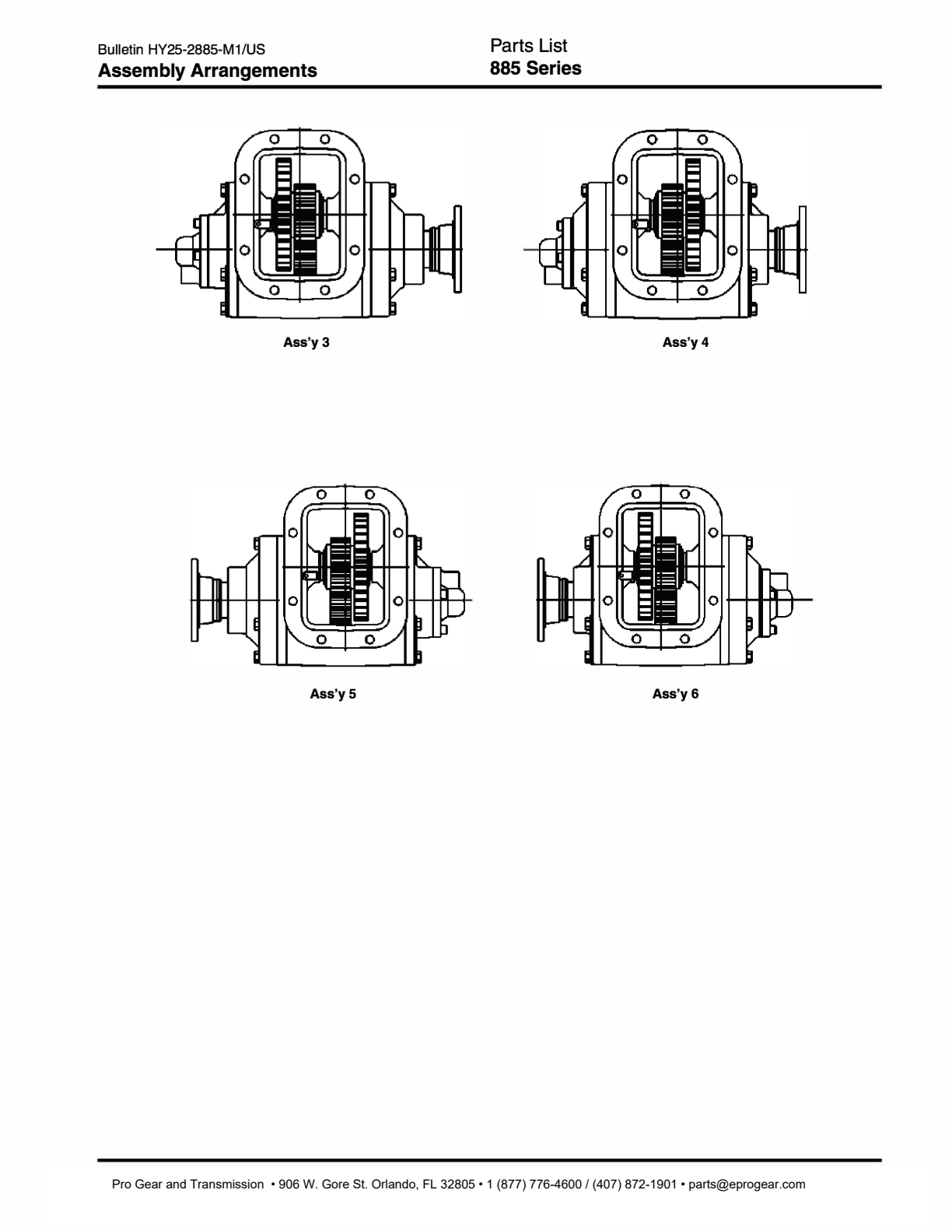

Output Options 885 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Output Options 885 Series Drive Shaft & Clutch Assembly 329314 *X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P883 | Output Shaft (xv & •ab 4 & 6) (329314-1X). | 1 or | $1,211.22 | Add to Cart | ||
| 3P887 | Output Shaft (xv & •ab 3 & 5) (329314-2X). | 1 or | — | Call for availability | ||
| 3P884 | Output Shaft (xs 4 & 6) (329314-3X). | 1 or | $1,048.67 | Add to Cart | ||
| 3P898 | Output Shaft (xs 3 & 5) (329314-4X). | 1 or | $876.35 | Add to Cart | ||
| 3P885 | Output Shaft (•xy 4 & 6) (329314-5X) | — | Call for availability | |||
| 2 | 2P844 | Inner Clutch Gear | $108.04 | Add to Cart | ||
| 3 | 379532 | Lockring. | 1 | $5.98 | Add to Cart | |
| 4 | 379489 | Friction Disc. | 8 | $17.94 | Add to Cart | |
| 5 | 379776 | Clutch Plate. | 7 | $17.85 | Add to Cart | |
| 6 | 37P24 | Spring 2.531 " X 2.13 " | $12.29 | Add to Cart | ||
| 7 | 379821 | Piston Clutch | $155.20 | Add to Cart | ||
| 8 | 379820 | Back-up Cylinder Clutch | $669.69 | Add to Cart | ||
| 9 | 28P260 | O-ring 4.984" X .139" | $56.79 | Add to Cart | ||
| 10 | 379465 | Lockring | $2.57 | Add to Cart | ||
| 11 | 28P194 | O-ring 1 .424" X .103" Per 2018 Chelsea Suggested List Price. | 2 | $12.24 | Add to Cart |
'1�~
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379900 | Ass'y | / ""I "C < | $5.99 | Add to Cart | ||
| 79042 | Coaoecto, F� Manualw I I 379253 Ring Connector I Arrows Connect To I Ground 379303-1 �9043 Lenoid 12V 9303-2 Lenoid 24V | CC) ll> | — | Call for availability |
Parts List Kits Bill of Materials 885 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379896 | Pipe Adapter With .031" Orifice | 2 | $59.98 | Add to Cart | ||
| 379625 | 90° Male Elbow Sae 37° (jic) | $17.80 | Add to Cart | |||
| 379627 | Male Pipe Branch Tee To Male Sae 37° (jic) | $20.06 | Add to Cart | |||
| 378897 | Street Tee | 1 | $238.33 | Add to Cart | ||
| 28-P-245 | O-ring | $45.00 | Add to Cart | |||
| 328591-57X | Class C 2 & 4-Bolt Pump Mounting | $1,029.24 | Add to Cart | |||
| 21-P-568 | Bearing Cap | 1 | — | No longer available — call for replacement | ||
| 328591-37X | {nla) Class C 2 & 4-Bolt Pump Mounting (includes Items 111 Thru 119) | $969.80 | Add to Cart | |||
| 328591-38X | (nla) Meiller Pump Mount Din 80mm (includes Items 111 Thru 119) | — | Call for availability | |||
| 378382 | Locknut | $60.21 | Add to Cart | |||
| 379265 | Grommet ' O | $3.21 | Add to Cart | |||
| 379306 | Spade | $2.50 | Add to Cart | |||
| 379257 | Connector J Slice Grommet Insert In O :s:: | $2.91 | Add to Cart | |||
| 379252 | Butt Connector N | $2.30 | Add to Cart | |||
| 378414 | Pre~t-'rot Ure Protection Valve 378881 Rocker Indicator Light 12V | $66.97 | Add to Cart | |||
| 379044-6 | 11 Indicator Light 24V | $41.17 | Add to Cart | |||
| 379253 | Ring | $3.11 | Add to Cart | |||
| 378416 | Hex N I P P L ~ Plastic Tubing | $4.80 | Add to Cart | |||
| 379106 | U1 | $5.65 | Add to Cart | |||
| 500357-7 | Washers | $1.07 | Add to Cart | |||
| 500457-6 | Screws | $1.12 | Add to Cart | |||
| 379258 | Bracket | $5.11 | Add to Cart | |||
| 379131-1 | Pressure Switch | $3.19 | Add to Cart | |||
| 328923-10X | (10 Ft Supplied W/eoc) O Ii' :::c | — | No longer available — call for replacement | |||
| 328923-5X | (5 Ft Optional Cable) 379254-13 - | — | No longer available — call for replacement | |||
| 379042 | Controller 329650X 379254-8 | $5.66 | Add to Cart | |||
| 378966 | Street Tee | $30.15 | Add to Cart | |||
| 379303-2 | Ui - | $538.99 | Add to Cart | |||
| 329314-3X | Drive Shaft & Clutch Ass'y (xs 4&6) | $2,089.59 | Add to Cart | |||
| 328946X | Caution Label Kit | — | No longer available — call for replacement | |||
| 379085-2 | Instructions Label | $4.02 | Add to Cart | |||
| 379624 | Card Product Warranty | $3.72 | Add to Cart | |||
| 379424-21 | Stud .438" | 8 | $5.84 | Add to Cart | ||
| 379745 | Flange Nut | 8 | $2.34 | Add to Cart | ||
| 329314-4X | Drive Shaft & Clutch Ass'y (xs 3&5) | $2,089.59 | Add to Cart | |||
| 379429-19 | Metric Stud | 8 | $5.79 | Add to Cart | ||
| 329314-1X | Drive Shaft & Clutch Ass'y (xv & •ab 4 & 6) | $1,899.36 | Add to Cart | |||
| 329314-5X | Drive Shaft & Clutch Ass'y (•xv 4&6) | — | Call for availability | |||
| 329314-2X | Drive Shaft & Clutch Ass'y (xv & •ab 3 & 5) | $1,899.36 | Add to Cart | |||
| 3-P-897 | Standard Shaft | 1 | $958.98 | Add to Cart | ||
| 328388-49X | Air Shift | $151.97 | Add to Cart | |||
| 378881 | Rocker Switch | $111.97 | Add to Cart | |||
| 378978 | Indicator Light | $25.82 | Add to Cart | |||
| 379254-13 | Wire, Blue | $11.68 | Add to Cart | |||
| 379254-15 | Wire Ring | — | No longer available — call for replacement | |||
| 379303-1 | Valve 12V | $334.31 | Add to Cart | |||
| 379305 | Pressure Switch | $206.60 | Add to Cart | |||
| 379336 | Switch Bracket | 1 | $10.11 | Add to Cart | ||
| 379640 | Booted Connector | $18.40 | Add to Cart | |||
| 328931X | Valve Kit | 1 | $3.54 | Add to Cart | ||
| 500376-6 | Nut 10-24 | 4 | — | No longer available — call for replacement | ||
| 500448-9 | Screw Slot | 4 | $1.05 | Add to Cart | ||
| 379005 | Indicator Light ' | 1 | — | No longer available — call for replacement | ||
| 329090-6X | Valve Kit | 1 | $216.58 | Add to Cart | ||
| 379130 | Support Bracket | 2 | $3.48 | Add to Cart | ||
| 379497 | Pilot Valve | 1 | $434.66 | Add to Cart | ||
| 379547 | Pressure Switch | 1 | — | No longer available — call for replacement | ||
| 380097 | Tee-union, .250" Tube | 1 | $20.69 | Add to Cart | ||
| 500750-1 | Tee Street, .125"-27 | 1 | $4.86 | Add to Cart | ||
| 75-P-13 | Indicator Light | 1 | $25.84 | Add to Cart | ||
| 379254-14 | Wire, Black | 1 | $8.68 | Add to Cart | ||
| 68P511 | Name Plate | 1 | — | Call for availability | ||
| 329314VX | Drive Shaft & Clutch Assembly (see Page 1 1 For Options) (includes Items 35-46) | 1 | — | Call for availability | ||
| 328170201X | Stud Kit (metric Mount) Installation Kits | 1 | $74.25 | Add to Cart | ||
| MS38654USA | Part | — | Call for availability | |||
| 3996BC | .095" Din 120 Flange | — | Call for availability | |||
| 18095 | 28-P-219 Oil Seal 378431 -11 Hex Cap Screw (.375" -16 X 1 .125") 560977 Tapered Bearing Cone 2.574" 560976 Tapered Bearing Cone [65.38] 6.196" [157.38] 6.160" [156.46] Vxy Output Option .394" | 1 | — | Call for availability | ||
| GR94 | Aw 3 | — | Call for availability |
This is the complete factory parts breakdown for the Chelsea PTO 885 — every part in the manual, matched to our live inventory. We stock 155 of the 183 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 885 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 885 |
| PTO type | Chelsea 800 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 28 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
