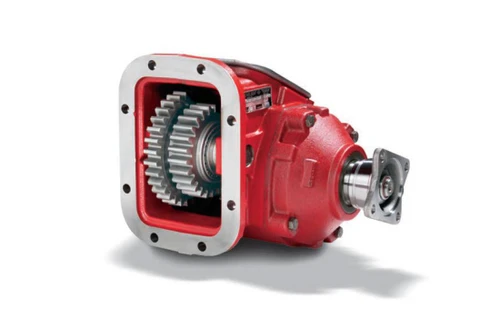

The Chelsea 885 Series Power Take-Off, part number 885XGAKP-Q4XV or 885XGAKPQ4XV, is an 8-bolt hydraulic PowerShift PTO built for heavy-duty vocational truck applications. The 885 Series is rated for intermittent torque up to 500 ft-lb (678 Nm), with continuous operation available at a 30% de-rating. It mounts to transmissions with an 8-bolt PTO aperture, including Allison, Eaton/Fuller, Volvo/Mack, and other compatible units. Output options include an SAE C pump flange (1-1/4 in. - 14T spline) and a 1410 Series companion flange. The cast iron housing and heavy-duty ball bearings on the output shaft are characteristic of the 885 Series design. Shaft power ratings for the series run 48 HP at 500 RPM and 95 HP at 1000 RPM. Call us to confirm proper fit for your application.
Features
8-bolt mounting for Allison, Eaton/Fuller, Volvo/Mack, and other compatible transmissions
Hydraulic PowerShift (Air PowerShift) engagement
Intermittent torque rating up to 500 ft-lb (678 Nm); continuous operation with 30% de-rating
SAE C pump flange output (1-1/4 in. - 14T spline) and 1410 Series companion flange output
Cast iron housing with heavy-duty ball bearings on the output shaft
Suited for oil field, bulk transport, fire and rescue, and other heavy-duty mobile applications
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, and other 8-bolt aperture transmissions
- Intermittent Torque Rating: Up to 500 ft-lb (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Output Options: SAE C Pump Flange (1-1/4 in. - 14T spline); 1410 Series Companion Flange
- Shaft Power: 48 HP at 500 RPM; 95 HP at 1000 RPM
- Housing Material: Cast iron
- NMFC Code: 128520 (Hydraulic PTOs, Pumps, Motors, etc.)
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
