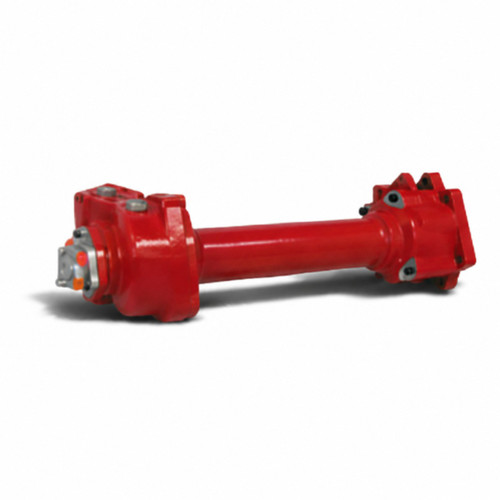

The Chelsea 890UDFJW-D5DA or 890UDFJWD5DA is a hydraulic PowerShift power take-off built specifically for Allison 3000 MD and 4000 HD Series transmissions. It mounts with a 10-bolt pattern and delivers up to 670 lb-ft continuous torque through an SAE C ("XS") output shaft. The one-piece main shaft eliminates the input splines between the PTO and the output extension, and the clutch is positioned at the rear of the PTO housing so the gear section tucks tightly against the transmission, moving the pump flange rearward for improved frame-rail clearance. Wet Spline output technology protects the pump shaft interface under demanding, continuous-duty operation. Shaft power output reaches 64 HP at 500 RPM and 128 HP at 1,000 RPM. Typical applications include aerial trucks, fire and rescue apparatus, refuse trucks, and truck cranes. A genuine Chelsea part, available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Chelsea 890 Series, part number 890UDFJW-D5DA or 890UDFJWD5DA
Fits Allison 3000 MD and 4000 HD Series transmissions via 10-bolt mount
Hydraulic PowerShift (hot-shift) engagement
SAE C ("XS") output shaft with Wet Spline Technology for extended pump shaft life
Continuous-duty torque rating up to 670 lb-ft; intermittent torque 501+ lb-ft
Shaft power: 64 HP at 500 RPM, 128 HP at 1,000 RPM
One-piece main shaft design moves pump flange rearward for improved frame-rail clearance
Tech Specs
- Transmission Application: Allison 3000 MD and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: SAE C ("XS") Wet Spline
- Outlet Flange Type: SAE C
- Continuous Torque Rating: 670 lb-ft (check application pages for actual rating)
- Intermittent Torque: 501+ lb-ft
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1,000 RPM
- Lubricant: Wet Spline
Additional Information
Parts Manual: Chelsea 890 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
