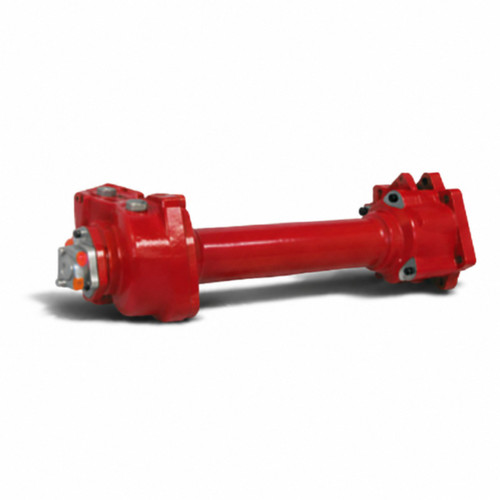

The Chelsea 892 Series Power Take-Off, part number 892CCFJW-B3CK or 892CCFJWB3CK, is a hydraulic hot shift PTO engineered specifically for Allison 4700 Series transmissions. The 892 Series moves the pump mounting flange to the rear of the transmission, improving pump clearance in tight frame-rail installations. It mounts via a 10-bolt pattern and features an SAE C outlet flange and SAE C output shaft type. Wet spline output technology extends PTO and pump shaft life under demanding duty cycles. The one-piece main shaft eliminates input splines between the PTO body and output extension, and the clutch sits at the rear of the housing to allow the gear section to tuck tightly against the transmission. Typical applications include aerial trucks, fire and rescue trucks, refuse trucks, and truck cranes. Call us to confirm proper fit for your specific Allison 4700 configuration.
Features
Hydraulic hot shift operation for on-the-go engagement
10-bolt mounting pattern with additional rear bracket for transmission support
SAE C outlet flange and SAE C output shaft type
Wet spline output extends PTO and pump shaft life in high-demand applications
One-piece main shaft eliminates input splines between PTO body and output
Suited for aerial, fire and rescue, refuse, and truck crane applications
Tech Specs
- Series: Chelsea 892
- Shift Type: Hydraulic Hot Shift
- Mounting Type: 10-Bolt
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C
- Lubricant / Output: Wet Spline
- Transmission Fit: Allison 4700 Series
- Intermittent Torque: 501+ lb-ft (501+ Nm)
- Output Power: 56+ HP (51+ kW)
- Dimensions (H x W x L): 13 in. x 11 in. x 38 in.
Additional Information
Parts Manual: Chelsea 892 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
