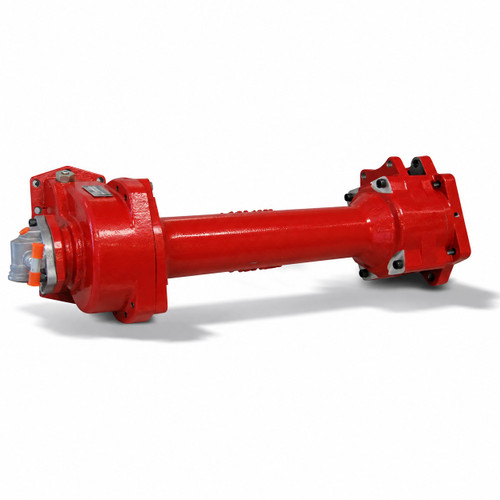

The Chelsea 897HCFJW-M5XV or 897HCFJWM5XV is a constant engagement Power Take-Off from the Chelsea 897 Series, designed specifically for Allison 3000 and 4000 Series transmissions. The 897 Series moves the SAE C pump mounting flange to the rear of the transmission, positioning the hydraulic pump output behind the gear section so the housing tucks tightly against the transmission for improved clearance between the PTO and the frame rail. Mounting is via a 10-bolt pattern, with an additional rear bracket for support. The output shaft uses Chelsea's Wet Spline design, which lubricates the pump shaft interface to extend spline life in demanding duty cycles. The one-piece main shaft eliminates input splines between the PTO body and the output extension. Common applications for the 897 Series include fire and rescue trucks, aerial trucks, refuse trucks, and truck cranes. Call us to confirm proper fit for your specific transmission configuration.
Features
Constant engagement (constant mesh) shift type for continuous-duty hydraulic applications
10-bolt mounting pattern with rear bracket for added transmission support
SAE C outlet flange and SAE C output shaft type
Wet Spline output extends PTO and pump shaft life under demanding conditions
Pump flange located at the rear of the transmission for improved pump clearance
One-piece main shaft eliminates input splines between PTO body and output extension
Tech Specs
- Series: Chelsea 897
- Shift Type: Constant Engagement (Constant Mesh)
- Mounting Type: 10-Bolt
- Output Shaft Type: SAE C
- Outlet Flange Type: SAE C
- Output Lubrication: Wet Spline
- Intermittent Torque: 501+ lb-ft
- Output Power: 56+ HP
- Transmission Fit: Allison 3000 Series, Allison 4000 Series
- Dimensions (H x W x L): 13 in. x 11 in. x 31 in.
Additional Information
Parts Manual: Chelsea 897 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
