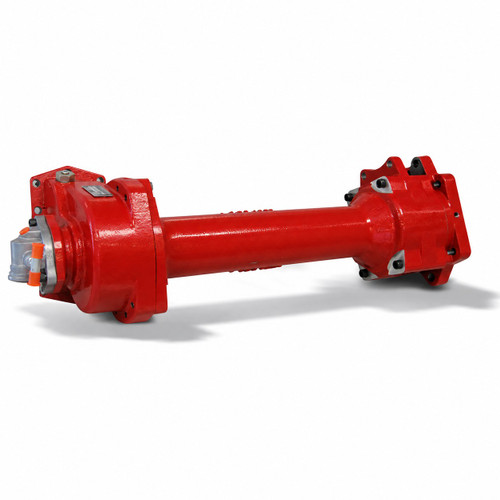

The Chelsea 897NDFJW-M3CS or 897NDFJWM3CS is a constant engagement power take-off from the Chelsea 897 Series, designed specifically for Allison 3000 and 4000 Series transmissions. The 10-bolt mounting configuration positions the SAE C output flange at the rear of the transmission, moving the pump interface rearward to improve clearance between the pump and the frame rail. The one-piece main shaft eliminates the input splines that would otherwise exist between a PTO body and a separate output extension. The wet spline output extends the service life of both the PTO and the mating pump shaft under demanding duty cycles. Typical applications include aerial trucks, fire and rescue apparatus, truck cranes, and refuse vehicles. Call us to confirm proper fit for your specific transmission configuration.
Features
10-bolt mounting designed for Allison 3000 and 4000 Series transmissions
Constant engagement (constant mesh) shift type
SAE C output flange and output shaft type
Rear-positioned pump interface for improved clearance between pump and frame rail
One-piece main shaft eliminates input splines between PTO body and output
Wet spline output for extended PTO and pump shaft service life
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Engagement (Constant Mesh)
- Output Shaft Type: SAE C
- Outlet Flange Type: SAE C
- Transmission Fitment: Allison 3000 and 4000 Series
- Lubricant/Output Option: Wet Spline
- Dimensions (H x W x L): 13 in. x 11 in. x 31 in.
Additional Information
Parts Manual: Chelsea 897 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
