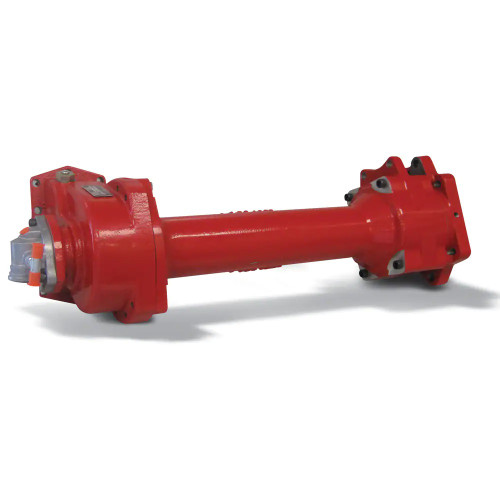

The Chelsea 899HEFJW-M5XY or 899HEFJWM5XY is a constant-mesh Power Take-Off from the Chelsea 899 Series, engineered specifically for Allison 4700 Series transmissions. The 10-bolt mounting configuration positions the SAE C pump flange at the rear of the transmission, tucking the housing tightly against the transmission for improved clearance between the PTO and the frame rail. Output is through an SAE C 1-1/4"-14T pump spline shaft with wet spline lubrication to extend PTO and pump shaft life under demanding duty cycles. The one-piece main shaft eliminates input splines between the PTO and output extension. Common applications in this series include aerial trucks, fire and rescue, refuse trucks, and truck cranes. Call us to confirm proper fit for your specific transmission configuration.
Features
Designed for Allison 4700 Series transmissions
10-bolt mounting with PTO pump flange positioned at the rear of the transmission
SAE C output with 1-1/4"-14T pump spline shaft
Wet spline output design extends PTO and pump shaft service life
One-piece main shaft eliminates input splines between PTO body and output
Constant-mesh (non-shiftable) operation
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: SAE C - 1-1/4"-14T Pump Spline
- Outlet Flange Type: SAE C
- Output Spline Lubrication: Wet Spline
- Intermittent Torque Rating: 501+ lb-ft
- Output Power: 56+ HP
- Compatible Transmission: Allison 4700 Series
Additional Information
Parts Manual: Chelsea 899 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
