Chelsea PTO 899 Series Parts Manual

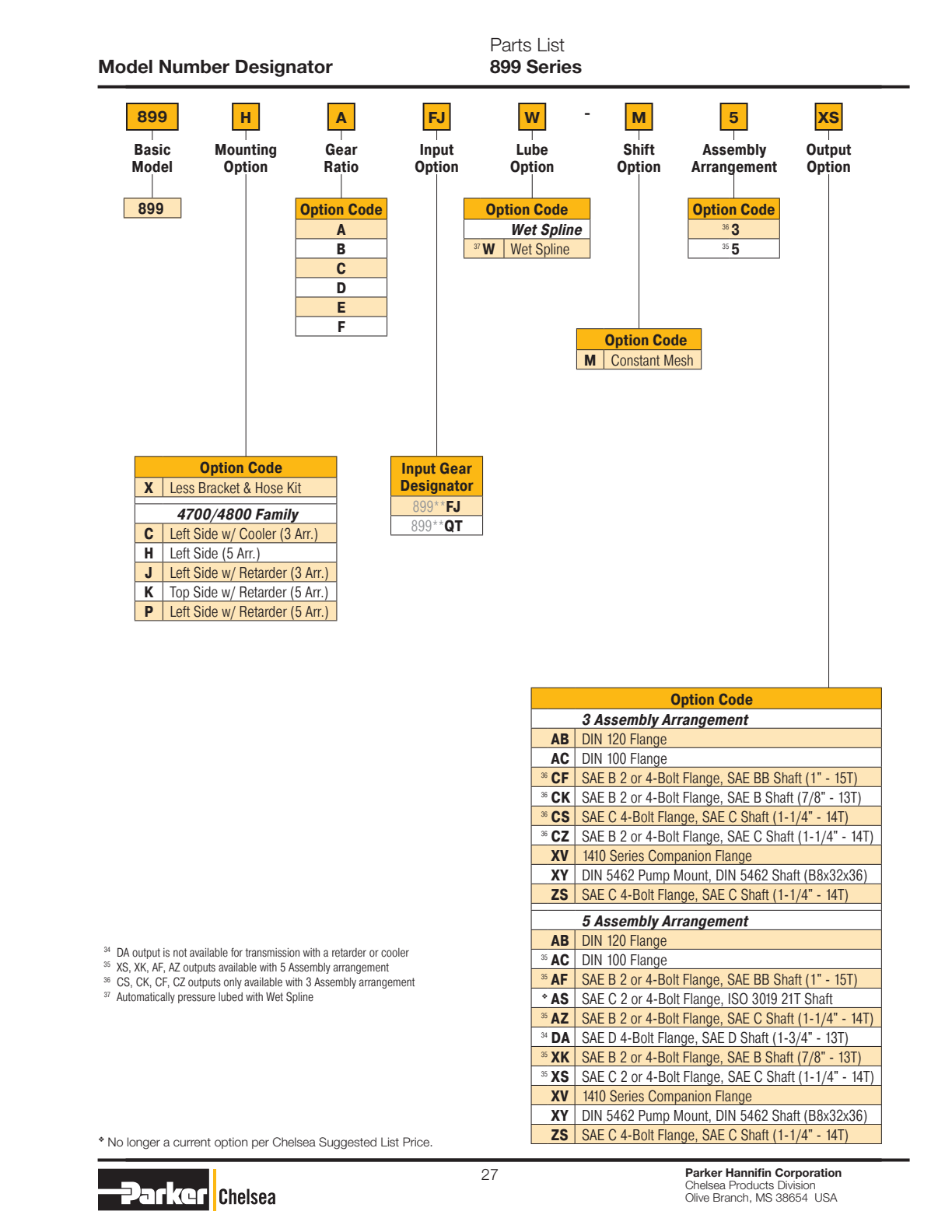

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Allison
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Parts List Bill of Materials 899 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P629 | Housing (5 Arrangement) | 1 | $544.27 | Add to Cart | |
| 1P631 | Housing (3 Arrangement) | 1 | $1,098.32 | Add to Cart | ||
| 1P658 | Housing (p Mount Only) | 1 | $493.53 | Add to Cart | ||
| 2 | 54P25 | Bearing Retainer | 1 | $1,895.49 | Add to Cart | |
| 54P32 | Bearing Retainer W/ Retarder (j Mount Only) | 1 | $1,660.96 | Add to Cart | ||
| 3 | 329662X | Drive Shaft Assembly | 1 | $4,608.33 | Add to Cart | |
| 4 | 550026 | Ball Bearing (1 .771 " X 3 .937 " X .984") | 1 | $222.70 | Add to Cart | |
| 5 | 379668 | Lockring | 3 | $3.21 | Add to Cart | |
| 7 | 560972 | Roller Needle Bearing Assembly (1 .500" X 1 .875" X 1 .000") Sold As Kit | 1 | $32.22 | Add to Cart | |
| 10 | 380064 | Lockring | 1 | $14.60 | Add to Cart | |
| 561026 | Tapered Bearing Cone (1 .181 " X .984") | 2 | $131.13 | Add to Cart | ||
| 12 | 9P99 | Idler Shaft (1 .180") | 1 | $273.42 | Add to Cart | |
| 13 | 28P42 | O-ring (1 .051 " X .070") | 1 | $3.59 | Add to Cart | |
| 14A | 14P821 | Spacer (1 .191 " X 1 .750" X .080") | 1 | $43.74 | Add to Cart | |
| 14B | 14P821 | Spacer (1 .191 " X 1 .750" X .080") (thickness As Required) | A.R. | $43.74 | Add to Cart | |
| 14P822 | Spacer (1 .191 " X 1 .750" X .085") | A.R. | $43.74 | Add to Cart | ||
| 14P823 | Spacer (1 .191 " X 1 .750" X .090") | A.R. | $43.74 | Add to Cart | ||
| 14P824 | Spacer (1 .191 " X 1 .750" X .094") | A.R. | $43.74 | Add to Cart | ||
| 15 | 3784527 | 1/4" Socket Head Set Screw (.250" -20 X .500") | 1 | $4.37 | Add to Cart | |
| 16 | 28P245 | O-ring (5 .017 " X .103") (all Pump Flange Outputs) | 2 | $45.00 | Add to Cart | |
| 28P245 | O-ring (5 .017 " X .103") (all Companion Flange Outputs) (xv, Ab, Ac Outputs) | 3 | $45.00 | Add to Cart | ||
| 17 | 379242 | Straight Adapter (.125" -27 X .750" -16) | 1 | $22.23 | Add to Cart | |
| 18 | 379231 | Pipe Plug (.125" -27) | 1 | $1.50 | Add to Cart | |
| 19 | 37943318 | 5/16" Socket Head Cap Screw (.375" -16 X 4.500") | 4 | $20.84 | Add to Cart | |
| 20 | 329895X | Seal Cap Assembly | 1 | $430.29 | Add to Cart | |
| 21 | 22P112 | Gasket. | 1 | $20.18 | Add to Cart | |
| 22 | 3784476 | 1/4" Socket Head Cap Screw (.312 " -18 X 1 .000") | 3 | $4.33 | Add to Cart | |
| 23 | 68P511 | Adhesive Label | 1 | — | Call for availability | |
| 26 | 37843113 | 9/16" Hex Head Cap Screw (.375" -16 X 1 .375") | 4 | $2.73 | Add to Cart | |
| 27 | 38007607 | Hardened Flat Washer (.410" X .816" X .066") | 8 | $1.50 | Add to Cart | |
| 28 | 379486 | 90° Elbow (.438" -20) | 1 | $28.97 | Add to Cart | |
| 3795642 | Cap Thread (.438") | 1 | $1.23 | Add to Cart | ||
| 30 | 37843314 | 5/16" Hex Head Cap Screw (.500" -13 X 1 .500") (xv, Ab, Ac Outputs) | 4 | $3.89 | Add to Cart | |
| 31 | 329654X | Cover Kit (xs, Zs, Cs Outputs) | 1 | $157.74 | Add to Cart | |
| 329658X | Cover Kit (xk, Af, Az, Ck, Cf, Cz Outputs) | 1 | $157.74 | Add to Cart | ||
| 330159X | Cover Kit (xy Output Only) | 1 | — | Call for availability | ||
| 329722X | Cover Kit (da Output Only) Required Continued On Next | 1 | $118.75 | Add to Cart | ||
| 32894836X | Gasket & Installation Kit (all) Stud Kits | 1 | $42.19 | Add to Cart | ||
| 717086X | Stud Kit (5 Arrangement) | 1 | $84.46 | Add to Cart | ||
| 7170123X | Stud Kit (3 Arrangement) Bracket & Hose Kits | 1 | $119.77 | Add to Cart | ||
| 3298973X | Bracket & Hose Kit (h Mount) | 1 | $398.97 | Add to Cart | ||
| 3298976X | Bracket & Hose Kit (u Mount) | 1 | $530.56 | Add to Cart | ||
| 3298977X | Bracket & Hose Kit (c Mount) | 1 | $400.57 | Add to Cart | ||
| 32989710X | Bracket & Hose Kit (j Mount) | 1 | $423.52 | Add to Cart | ||
| 32989711X | Bracket & Hose Kit (k Mount) | 1 | $465.17 | Add to Cart | ||
| 32989719X | Bracket & Hose Kit (p Mount) Installation Kits | 1 | $507.03 | Add to Cart | ||
| 3298981X | Mounting & Installation Kit (xs, Zs, Cs Outputs) | 1 | $135.33 | Add to Cart | ||
| 3298982X | Mounting & Installation Kit (xk, Af, Az, Vck, Cf, Cz Outputs) | 1 | $195.64 | Add to Cart | ||
| 3298983X | Mounting & Installation Kit (xy Output) | 1 | $176.91 | Add to Cart | ||
| 3298984X | Mounting & Installation Kit (da Output) Service Kits | 1 | $201.53 | Add to Cart | ||
| 32907146X | Gasket & Seal Kit (xs, Zs, Xk, Af, Az ,cs, Vck, Cf, Cz Outputs) | 1 | $253.84 | Add to Cart | ||
| 32907147X | Gasket & Seal Kit (xy Output) | 1 | $241.51 | Add to Cart | ||
| 32907148X | Bearing Kit (xs, Zs, Xk, Af, Az, Cs, Vck, Cf, Cz Outputs) | 1 | $717.52 | Add to Cart | ||
| 32907149X | Bearing Kit (xy Output) | 1 | $717.52 | Add to Cart | ||
| 32907151X | Bearing Kit (xv, Af, Az Outputs) | 1 | $717.52 | Add to Cart | ||
| 32907152X | Gasket & Seal Kit (xv, Af, Az Outputs) | 1 | $305.53 | Add to Cart | ||
| 32907153X | Bearing Kit (da Output) | 1 | — | No longer available — call for replacement | ||
| 32907154X | Gasket & Seal Kit (da Output) Conversion Kits | 1 | $244.81 | Add to Cart | ||
| 32916063X | Conversion Kit (xs To Xv) (xs, Zs, Cs Outputs) | 1 | $1,068.90 | Add to Cart | ||
| 32916064X | Conversion Kit (xs To Ab) (xs, Zs, Cs Outputs) | 1 | $1,359.67 | Add to Cart | ||
| 32916065X | Conversion Kit (xs To Ac) (xs, Zs, Cs Outputs) (3 Arrangement) | 1 | — | No longer available — call for replacement | ||
| 32916066X | Conversion Kit (xs To Ac) (rk Outputs) (5 Arrangement) Chelsea Suggested List Price | 1 | $1,429.91 | Add to Cart |
Gear Ratio Options 899 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P14281 | 1X 5-P-1428 50 5-P-1545 24 2-P-862 | 40 | — | Call for availability | ||
| 5P142812X | 5-P-1428 50 5-P-1546 25 2-P-872 5-P-1428-3X 5-P-1428 50 5-P-1439 26 2-P-873 5-P-1428-4X 5-P-1428 50 5-P-1440 27 2-P-874 5-P-1428-5X 5-P-1428 50 5-P-1432 29 2-P-865 | 39 | $940.37 | Add to Cart |
Shift Options 899 Series Seal Cap Assembly 329895X
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P846 | Seal Cap | 1 | $343.76 | Add to Cart | |
| 2 | 28P119 | Oil Seal (1 .379" X .875" X .250") | 1 | $26.61 | Add to Cart | |
| 3 | 378811 | Seal Back-up Plate | 1 | $5.21 | Add to Cart | |
| 4 | 378849 | Lockring | 1 | $2.12 | Add to Cart | |
| 22P112 | Gasket Do Not Have An External Lube Hose To Supply The Oil To The Output Section Of The Pto. | 1 | $20.18 | Add to Cart |
Output Options 899 Series Drive Shaft Assembly 329662X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3P1008 | Output Shaft | 1 | $4,563.82 | Add to Cart | |
| 2 | 380070 | Lockring | 1 | $3.31 | Add to Cart | |
| 3 | 561028 | Ball Bearing (1 .969" X 3 .150" X .630") | 1 | $60.54 | Add to Cart |
Output Options 899 Series (AC) DIN 100 Companion Flange 329608-3X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P736 | Bearing Cap | 1 | $434.21 | Add to Cart | |
| 2 | 378161 | Gasket 4600 | 1 | $27.32 | Add to Cart | |
| 3 | 28P283 | Oil Seal (2 .754" X 2 .000" X .313 ") | 1 | $49.34 | Add to Cart | |
| 4 | 379742 | Din 100 Companion Flange. | 1 | $1,076.21 | Add to Cart | |
| 5 | 380486 | Stop Nut (7/8" 14T) Spline | 1 | $60.21 | Add to Cart | |
| 6 | 561020 | Ball Bearing (1 .574" X 3 .149" X .708") | 1 | $42.83 | Add to Cart | |
| 7 | 378836 | Lockring | 1 | $13.50 | Add to Cart | |
| 8 | 35P103 | Gasket Shaft. | 1 | $25.58 | Add to Cart | |
| 9 | 3P1009 | Output Shaft 10T Straight | 1 | $761.34 | Add to Cart | |
| 38007613 | Flat Hardened Washer (.950" X 1 .762 " X .157 ") | 1 | $3.51 | Add to Cart | ||
| 28P245X | O-ring (5 .017 " X .103 ") | 1 | $70.29 | Add to Cart | ||
| 4 | 379558 | Din 120 Companion Flange | 1 | $698.00 | Add to Cart |
Output Options 899 Series (XV) SAE 1410 Companion Flange 329608-1X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P736 | Bearing Cap (ab, Ac, Xv) | 1 | $434.21 | Add to Cart | |
| 2 | 378161 | Gasket 4600 | 1 | $27.32 | Add to Cart | |
| 3 | 28P283 | Oil Seal (2 .754" X 2 .000" X .313") | 1 | $49.34 | Add to Cart | |
| 4 | 313431 | 1410 Series Companion Flange. | 1 | — | Call for availability | |
| 5 | 380486 | Stop Nut (7/8" 14T) Spline | 1 | $60.21 | Add to Cart | |
| 6 | 561020 | Ball Bearing (1 .574" X 3 .149" X .708") | 1 | $42.83 | Add to Cart | |
| 7 | 378836 | Lockring | 1 | $13.50 | Add to Cart | |
| 8 | 35P103 | Gasket Shaft | 1 | $25.58 | Add to Cart | |
| 9 | 3P1009 | Output Shaft 10T Straight | 1 | $761.34 | Add to Cart | |
| 38007613 | Hardened Flat Washer (.950" X 1 .762 " X .157 ") | 1 | $3.51 | Add to Cart | ||
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) | 1 | $70.29 | Add to Cart | ||
| 1 | 21P723 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 380093 | Coupling Af Output (1 " 15T/16T) | 1 | — | No longer available — call for replacement | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 899 Series (AS) SAE C 2 or 4-Bolt 1-3/8" 21T 329657-9X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P717 | Pump Flange | 1 | $646.72 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 380457 | Coupling Xs Output (1 -3/8" 21T/16T) | 1 | — | Call for availability | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) | 1 | $70.29 | Add to Cart | ||
| 1 | 21P723 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 4 | 380094 | Coupling Xs Output (1 -1/4" 14T/16T) | 1 | $307.26 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 899 Series (CF) SAE 2 or 4-Bolt 1 " 15T 329677-3X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P739 | Pump Flange | 1 | $624.84 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 380093 | Coupling Af Output (1 " 15T/16T) | 1 | — | No longer available — call for replacement | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") (wet Spline Pump Mount) | 1 | $49.60 | Add to Cart | ||
| 4 | 380092 | Coupling Xk Output (7/8" 13T/16T) | 1 | $307.26 | Add to Cart |
Output Options 899 Series (CS) SAE C 4-Bolt 1-1/4" 14T 329677-1X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P742 | Pump Flange | 1 | $646.72 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 380094 | Coupling Xs Output (1 -1/4" 14T/16T) | 1 | $307.26 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) | 1 | $70.29 | Add to Cart | ||
| 1 | 21P739 | Pump Flange | 1 | $624.84 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 899 Series (DA) SAE 4-Bolt 1-3/4" 13T 329657-6X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P746 | Pump Flange | 1 | $888.26 | Add to Cart | |
| 2 | 550509 | Ball Bearing (2 .362 " X 3 .740" X .708") | 1 | $213.92 | Add to Cart | |
| 3 | 378553 | Lockring | 1 | $18.98 | Add to Cart | |
| 4 | 380268 | Coupling Da Output (1 -3/4" 13T/16T) | 1 | $594.71 | Add to Cart | |
| 5 | 378552 | Lockring | 1 | $8.78 | Add to Cart | |
| 6 | 28P292 | Oil Seal (3 .346" X 2 .362 " X .315") | 1 | $68.29 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P291X | O-ring (5 .984" X .139") (wet Spline Pump Mount) | 1 | — | Call for availability | ||
| 1 | 21P723 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 380092 | Coupling Xk Output (7/8" 13T/16T) | 1 | $307.26 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 28P259X | O-ring (3 .984" X .139") | 1 | $49.60 | Add to Cart |
Output Options 899 Series (XS) SAE C 2 or 4-Bolt 1-1/4" 14T 329657-1X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P717 | Pump Flange | 1 | $646.72 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 380094 | Coupling Xs Output (1 -1/4" 14T/16T) | 1 | $307.26 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) | 1 | $70.29 | Add to Cart | ||
| 1 | 21P725 | Pump Flange | 1 | $612.58 | Add to Cart | |
| 2 | 550311 | Ball Bearing (1 .770" X 3 .346" X .748") | 1 | $81.15 | Add to Cart | |
| 3 | 378263 | Lockring | 1 | $19.87 | Add to Cart | |
| 4 | 380095 | Coupling Xy Output 8T Straight 16T. | 1 | $313.45 | Add to Cart | |
| 5 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 6 | 28P267 | Oil Seal (2 .627 " X 1 .750" X .312 ") | 1 | $66.05 | Add to Cart | |
| 28P252X | O-ring (2 .987 " X .103") (wet Spline Pump Mount) | 1 | $30.05 | Add to Cart |
Output Options 899 Series (ZS) SAE C 4-Bolt 1-1/4" 14T 329657-7X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P764 | Pump Flange | 1 | $620.57 | Add to Cart | |
| 2 | 561018 | Ball Bearing (1 .772 " X 2 .953" X .630") | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 380094 | Coupling Xs Output (1 -1/4" 14T/16T) | 1 | $307.26 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal (2 .953" X 1 .772 " X .315") | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Pipe Plug (.125" -27) | 2 | $1.50 | Add to Cart | |
| 28P245X | O-ring (5 .017 " X .103") (wet Spline Pump Mount) Chelsea Suggested List Price | 1 | $70.29 | Add to Cart |
Allison
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379486 | Transmission Pressure Hose Included In Hose & Bracket Kit Per Mounting Option Torque End Fittings To 1 1 -12 Lb-ft 379486 90° Elbow Install In Transmission High Pressure Port Md: Left Or Right Side Hd: Left Side Only Torque Nut To 13-15 Lb-ft Personal Injury | $28.97 | Add to Cart |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 500841-1 | 90° Elbow Torque To 8-12 Lb-ft | $9.09 | Add to Cart | |||
| 50-P-62 | 329130-4X 380071 (2) 380075 (3) | $134.77 | Add to Cart | |||
| 50-P-73 | 329075-2X 380071 (2) 380075 (3) | $260.91 | Add to Cart | |||
| 50-P-74 | 329130-4X 380071 (2) 380075 (3) | $124.31 | Add to Cart | |||
| 50-P-130 | 329130-4X 380071 (2) 380075 (3) | $216.79 | Add to Cart | |||
| 50-P-126 | 329130-4X 380071 (2) 380075 (3) | $204.15 | Add to Cart | |||
| 50-P-127 | 329075-2X 380071 (2) 380075 (3) | $180.02 | Add to Cart | |||
| 329899-2X | 500841-1 379964 329075-2X | $291.75 | Add to Cart | |||
| 379071-83X | O-ring Kit | — | Call for availability | |||
| 329608-2X | Output Assembly | 1 | — | Call for availability | ||
| 329608-3X | Output Assembly | 1 | — | Call for availability | ||
| 329608-1X | Output Assembly | 1 | — | Call for availability | ||
| 329609-3X | Output Assembly | 1 | $1,677.85 | Add to Cart | ||
| 69-P-18 | Wet Spline Tag | 1 | $6.83 | Add to Cart | ||
| 329609-5X | Output Assembly | 1 | $1,260.96 | Add to Cart | ||
| 329673-3X | Output Assembly | 1 | $1,431.09 | Add to Cart | ||
| 329673-1X | Output Assembly | 1 | $1,431.09 | Add to Cart | ||
| 329657-6X | Output Assembly | 1 | $1,730.11 | Add to Cart | ||
| 329609-4X | Output Assembly | 1 | $1,260.96 | Add to Cart | ||
| 329609-7X | Output Assembly | 1 | $1,512.27 | Add to Cart | ||
| 379252 | Pto | $2.30 | Add to Cart | |||
| 12015378 | 90° Md: Hd: | — | Call for availability | |||
| 379900 | Assy Fuse | $5.99 | Add to Cart | |||
| 379265 | To | $3.21 | Add to Cart | |||
| 379711 | To | $157.76 | Add to Cart | |||
| 379280 | Torque | $7.49 | Add to Cart | |||
| 379449 | Oil Pto It | $13.18 | Add to Cart | |||
| 329657-3X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 329609-9X | Output Assembly | 1 | — | Call for availability | ||
| 329657-5X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 329677-3X | Output Assembly | 1 | — | Call for availability | ||
| 329677-2X | Output Assembly | 1 | — | Call for availability | ||
| 329677-1X | Output Assembly | 1 | $776.70 | Add to Cart | ||
| 329677-5X | Output Assembly | 1 | $1,008.66 | Add to Cart | ||
| 329657-4X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 329657-7X | Output Assembly | 1 | $834.98 | Add to Cart | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 379451 | Pilot Screw (M10-1.5 X .984") | 2 | $7.23 | Add to Cart | ||
| 35-P-74 | Shim Gasket | 1 | $7.13 | Add to Cart | ||
| 379453-10 | Cap Screw (M10-1.5 X 1.378") | 8 | $6.86 | Add to Cart | ||
| 379085-2 | Instructions Label | 1 | $4.02 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379428-18 | Stud (M10 X 1.5 X .375"-24 X 2.000") | 1 | $8.32 | Add to Cart | ||
| 379744 | Flange Nut (.375"-24) | 1 | $1.63 | Add to Cart | ||
| 329130-4X | Hose Assembly | 1 | $96.99 | Add to Cart | ||
| 380668X | Bracket & Label Assembly | 1 | $5.98 | Add to Cart | ||
| 380075 | Hex Head Cap Screw | $13.93 | Add to Cart | |||
| 379061 | Plastic Wire Tie | 6 | $1.46 | Add to Cart | ||
| 380071 | Socket Head Shoulder Cap Screw | $39.72 | Add to Cart | |||
| 379257 | Electrical Connector | 2 | $2.91 | Add to Cart | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 329075-2X | Hose Assembly | 1 | $150.07 | Add to Cart | ||
| 379504 | Valve Connector Wiring | 1 | $52.22 | Add to Cart | ||
| 379254-17 | Electrical Wire 14G Fork | 1 | $18.76 | Add to Cart | ||
| 380672 | Female Spade Connector (.250") | 3 | — | Call for availability | ||
| 379061X | Plastic Wire Tie Assembly | 1 | — | Call for availability | ||
| 75-P-46X | Wire And Connectors Kit | 1 | $27.77 | Add to Cart | ||
| 75-P-53 | 24VDC Wire Harness Assembly | 1 | $207.54 | Add to Cart | ||
| 328923-10X | Speed Sensor Cable 10 Ft | 1 | — | No longer available — call for replacement | ||
| 379258 | Solenoid Valve Mounting Bracket | 1 | $5.11 | Add to Cart | ||
| 20071-3 | Eoc Unit (nss) | 1 | — | Call for availability | ||
| 379700 | Swivel Nut Tee (.438"-20) | 2 | $13.33 | Add to Cart | ||
| 379910 | Male Connector (.438"-20 X .125"-27) | 1 | $6.31 | Add to Cart | ||
| 380010 | Female Sae Swivel Nut Union (.438"-20) | 1 | $17.47 | Add to Cart | ||
| 329231X | Valve Connector Wire Assembly | 1 | $123.35 | Add to Cart | ||
| 379131-1 | Pipe Reducer Bushing | 1 | $3.19 | Add to Cart | ||
| 379686-2 | 24VDC Hydraulic Shifter Solenoid Valve | 1 | $466.27 | Add to Cart | ||
| 500357-7 | Lock Washer (.194" X .337" X .047") | 2 | $1.07 | Add to Cart | ||
| 500457-6 | Slotted Screw (.190"-32 X .438") | 2 | $1.12 | Add to Cart | ||
| 379686-1 | 12VDC Hydraulic Shifter Solenoid Valve | 1 | $473.29 | Add to Cart | ||
| 329230X | Wire & Butt Connector | 1 | — | No longer available — call for replacement | ||
| 21-P-759 | Bearing Cap | 1 | $241.43 | Add to Cart | ||
| 21-P-731 | Flange Pump | 1 | $196.99 | Add to Cart | ||
| 22-P-101 | Gasket | 1 | $15.38 | Add to Cart | ||
| 28-P-225 | Oil Seal (2.004" X 1.375" X .315") | 1 | $19.01 | Add to Cart | ||
| 378447-8 | Socket Head Cap Screw | 8 | $2.32 | Add to Cart | ||
| 28-P-244 | O-ring (1.174" X .103") | 2 | $5.03 | Add to Cart | ||
| 3-P-1051 | Output Shaft (7/8" 13T) | 1 | — | Call for availability | ||
| 378576 | Lockring | 2 | $3.16 | Add to Cart | ||
| 379746 | Lockring | 1 | $5.06 | Add to Cart | ||
| 379688 | Spline Lubricant | 1 | $8.98 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 899 — every part in the manual, matched to our live inventory. We stock 228 of the 254 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
