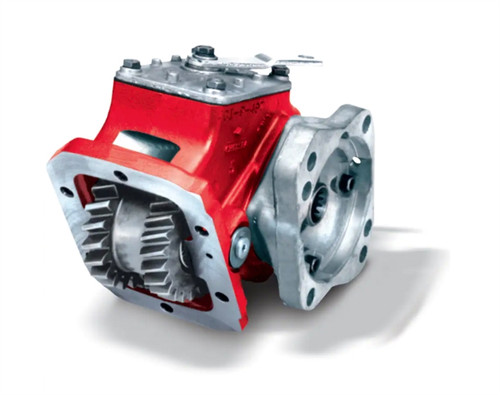

The Chelsea 221XCAJP-A5XQ or 221XCAJPA5XQ is a 6-bolt Power Take-Off assembly from the Chelsea 221 Series, built for low-speed, heavy-duty applications including dump trucks, tow and recovery, and aerial equipment. It mounts to transmissions from Allison, Eaton/Fuller, Volvo/Mack, Hino, and other manufacturers. The wire/cable mechanical shift drives a 1-1/4" round output shaft with keyway. Rated for intermittent torque up to 250 lb-ft (339 Nm) - verify exact rating on the application pages. Shaft power is 24 HP at 500 RPM and 48 HP at 1000 RPM. The cast iron housing is available in standard or low-profile configurations. Call us to confirm proper fit for your transmission and application.
Features
6-bolt mounting, compatible with Allison, Eaton/Fuller, Volvo/Mack, Hino, and other transmission manufacturers
Wire/cable mechanical shift type
1-1/4" round output shaft with keyway
Intermittent torque rating up to 250 lb-ft (339 Nm) - check application pages for exact rating
Shaft power: 24 HP at 500 RPM, 48 HP at 1000 RPM
Available in standard or low-profile housing; greaseable pump shafts reduce spline fretting and corrosion
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Output Shaft Type: 1-1/4" Round with key
- Transmission Manufacturer: Allison, Eaton/Fuller, Volvo/Mack, Hino, Other
- Mounting Type: 6-Bolt
- Shaft Power: 24 HP at 500 RPM, 48 HP at 1000 RPM (18 kW at 500 RPM, 36 kW at 1000 RPM)
