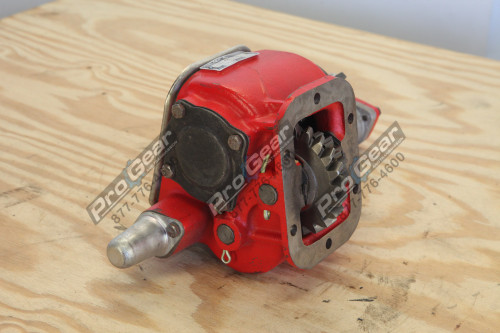

The Chelsea 221ZCDAX-A5XD or 221ZCDAXA5XD is a 6-bolt power take-off assembly from the Chelsea 221 Series, built for low-speed, heavy-duty applications including dump trucks, tow and recovery, and aerial equipment. Shift type is wire/cable mechanical. The 1-1/4" round output shaft with keyway transfers up to 250 lb-ft (339 Nm) intermittent torque, with shaft power rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Output power falls in the 46-55 HP range. Compatible transmissions include Allison, Eaton/Fuller, Volvo/Mack, and Hino. The 221 Series cast iron housing is available in standard or low-profile configurations, and greaseable pump shafts help reduce spline fretting and corrosion. Call us to confirm proper fit for your application.
Features
6-bolt mounting for Allison, Eaton/Fuller, Volvo/Mack, and Hino transmissions
Wire/cable mechanical shift engagement
1-1/4" round output shaft with keyway
Intermittent torque rating: 250 lb-ft (339 Nm) - verify actual rating on application pages
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Greaseable pump shafts to reduce spline fretting and corrosion
Available in standard or low-profile housing configurations
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Output Shaft Type: 1-1/4" Round with Key
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, Hino
- Mounting Type: 6-Bolt
- Shaft Power: 24 HP at 500 RPM / 18 kW at 500 RPM; 48 HP at 1,000 RPM / 36 kW at 1,000 RPM
