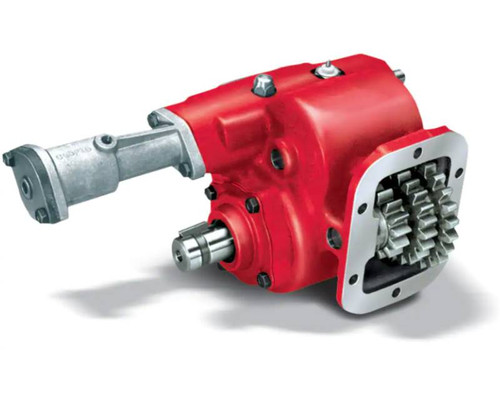

The Chelsea 340GFAHX-A5XD or 340GFAHXA5XD is a 340 Series Power Take-Off assembly built for vocational truck applications that require both forward and reverse rotation. Mounting is reversible 6-bolt, compatible with manual transmissions from Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other manufacturers. Shift type is mechanical lever. The 1-1/4" round output shaft with keyway delivers up to 200 lb-ft intermittent torque (check application pages for actual torque ratings for your specific installation). Shaft power is rated at 19 HP at 500 RPM and 38 HP at 1000 RPM. The cast iron housing and ball bearing output are characteristic of the 340 Series design. Typical applications include oil field and logging equipment. Call us to confirm proper fit for your application.
Features
Reversible 6-bolt mounting fits most manual transmissions with a 6-bolt aperture
Mechanical lever shift type
1-1/4" round output shaft with keyway
Intermittent torque rating up to 200 lb-ft / 271 Nm (verify actual rating for your application)
Shaft power: 19 HP at 500 RPM, 38 HP at 1000 RPM
Rugged cast iron housing with ball bearing output and removable cover plate for backlash adjustment
Tech Specs
- Intermittent Torque: 200 lb-ft / 271 Nm (Check Application Pages for Actual Torque Ratings)
- Mounting Type: Reversible, 6-Bolt
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Output Power: 36-45 HP / 21-30 kW
- Shift Type: Mechanical Lever
- Transmission Manufacturer Compatibility: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, Other
- Shaft Power: 19 HP at 500 RPM / 38 HP at 1000 RPM (14 kW at 500 RPM / 28 kW at 1000 RPM)
- Continuous Operation: Yes with 30% de-rating
