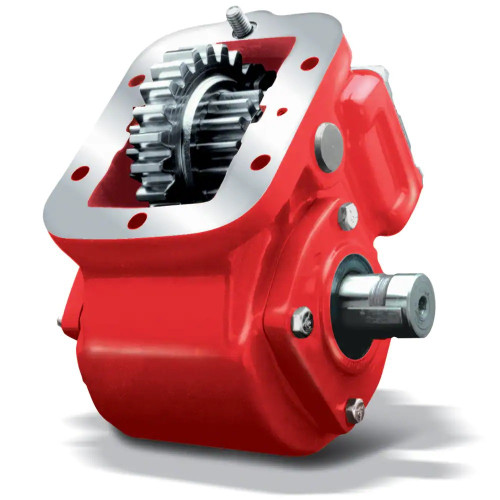

The Chelsea 221ZEAKP-M5GE or 221ZEAKPM5GE is a 6-bolt Power Take-Off assembly from the Chelsea 221 Series, built for low-speed, heavy-duty vocational applications including dump trucks, tow and recovery, and aerial equipment. Shift type is wire/cable mechanical. The 1-1/4" round output shaft with keyway delivers up to 250 lb-ft (339 Nm) intermittent torque; check application pages for the torque rating specific to your configuration. Output power runs 46-55 HP (31-40 kW), with shaft power rated at 24 HP at 500 RPM and 48 HP at 1000 RPM. Compatible transmission manufacturers include Allison, Eaton/Fuller, Volvo/Mack, and Hino. Call us to confirm proper fit for your application.
The Chelsea 221 Series uses a cast iron housing with tapered cone output shaft bearings for strong load-bearing capability across vocational duty cycles. The series supports twenty-six output options, three internal speed ratios, and eleven shift options. A low-profile housing variant is available where underhood clearance is limited. Greaseable pump shafts address spline fretting and corrosion in applications where consistent lubrication can be a challenge. Typical applications include dump trucks, tow and recovery rigs, and aerial equipment. Part number 221ZEAKP-M5GE is also referenced as SP221ZEAKP-M5GE.
Features
6-bolt mounting compatible with Allison, Eaton/Fuller, Volvo/Mack, and Hino transmissions
Wire/cable mechanical shift type
1-1/4" round output shaft with keyway
Intermittent torque up to 250 lb-ft (339 Nm) - verify rating on application pages
Shaft power: 24 HP at 500 RPM, 48 HP at 1000 RPM
Greaseable pump shafts to reduce spline fretting and corrosion
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (check application pages for actual torque rating for your configuration)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Output Shaft Type: 1-1/4" Round with keyway
- Transmission Manufacturer Compatibility: Allison, Eaton/Fuller, Volvo/Mack, Hino
- Mounting Type: 6-Bolt
- Shaft Power: 24 HP (500 RPM) / 48 HP (1000 RPM); 18 kW (500 RPM) / 36 kW (1000 RPM)
Additional Information
The Chelsea 221 Series uses a cast iron housing with tapered cone output shaft bearings for strong load-bearing capability across vocational duty cycles. The series supports twenty-six output options, three internal speed ratios, and eleven shift options. A low-profile housing variant is available where underhood clearance is limited. Greaseable pump shafts address spline fretting and corrosion in applications where consistent lubrication can be a challenge. Typical applications include dump trucks, tow and recovery rigs, and aerial equipment. Part number 221ZEAKP-M5GE is also referenced as SP221ZEAKP-M5GE.
