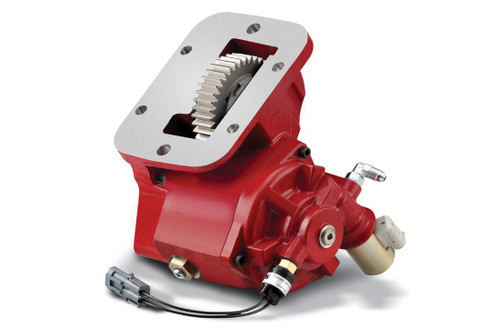

The Chelsea 249FMLLX-K282 or 249FMLLXK282 is a genuine Parker Chelsea 249 Series Power Take-Off assembly designed for the Ford Super Duty with the 6R140 TorqShift 6 automatic transmission, available in both 2WD and 4WD configurations. The 249 Series uses a 6-bolt Ford mounting pattern and features a patented noise-suppression system, making it the only quiet PTO certified for this transmission platform. A single hose connection and integrated cartridge actuation valve simplify installation and reduce leak paths. Intermittent torque capacity is up to 200 lb-ft (271 Nm), with output power in the 56+ HP range at 1,488 RPM. Typical applications include service trucks, tow and recovery, small dump trucks, and fire and rescue equipment. Call us to confirm proper fitment for your specific truck configuration.
Features
Chelsea 249 Series PTO for Ford Super Duty 6R140 TorqShift 6 automatic transmission
6-bolt Ford mounting pattern, fits 2WD and 4WD applications
Patented noise-suppression system, the only quiet PTO for this transmission
Intermittent torque capacity up to 200 lb-ft (271 Nm)
Single hose connection with integrated cartridge actuation valve for simplified installation
Output power 56+ HP (42 kW) at 1,488 RPM; internal pressure lube (X designation)
Tech Specs
- Mounting Type: Ford 6-Bolt
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Vehicle Application: Ford Super Duty (2WD and 4WD)
- Intermittent Torque: 200 lb-ft (271 Nm)
- Shaft Power: 57 HP (42 kW) at 1,488 RPM
- Output Power: 56+ HP
- Shift Type: Hydraulic PowerShift
- Lubricant System: Internal Pressure Lube
- Continuous Operation: Yes, with 30% de-rating
- Output Shaft Options (series): Round Shaft 1-1/4 in. with 5/16 in. Key; 3/4 in. 11-tooth Pump Spline; SAE B 7/8 in. 13-tooth Pump Spline
- Output Type Options (series): Driveline, SAE A Pump Flange
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
