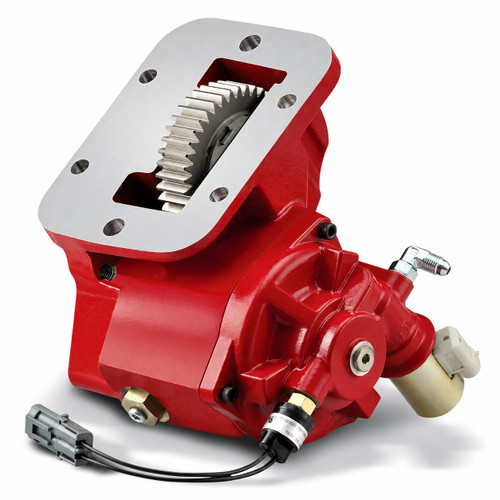

The Chelsea 249GMLLX-B2AD or 249GMLLXB2AD is a Hydraulic PowerShift PTO Assembly from the Chelsea 249 Series, designed for Ford 6R140 transmissions with a Ford 6-bolt mounting. It delivers up to 200 lb-ft intermittent torque and 57 HP at 1,488 RPM through a 1-1/4" round output shaft. The 249 Series is the only PTO in its class with a patented Noise Suppression System for quiet operation on the Ford Super Duty TorqShift 6 automatic transmission. Installation is simplified by a single-hose connection paired with an integrated actuation valve, which reduces leak paths and eliminates the need for special tools. Available for both 2WD and 4WD applications, this unit suits aerial, tow and recovery, service truck, small dump, and fire and rescue upfits. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Ford 6-bolt mounting for Ford 6R140 TorqShift 6 transmissions, 2WD and 4WD compatible
Hydraulic PowerShift (hydraulic) shift type
1-1/4" round output shaft
Intermittent torque rating: up to 200 lb-ft (271 Nm) - check application pages for actual torque ratings
Shaft power: 57 HP (42 kW) at 1,488 RPM
Patented Noise Suppression System - only quiet PTO for the Ford Super Duty TorqShift 6
Single-hose connection with integrated actuation valve eliminates extra leak paths and requires no special installation tools
Tech Specs
- Transmission Manufacturer: Ford
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift (Hydraulic)
- Output Shaft Type: 1-1/4" Round
- Intermittent Torque: Up to 200 lb-ft / 271 Nm (Check Application Pages for Actual Torque Ratings)
- Output Power: 56+ HP / 41-50 kW
- Shaft Power: 57 HP / 42 kW at 1,488 RPM
- Continuous Operation: Yes, with 30% de-rating
- Lubricant: Internal Pressure Lube
