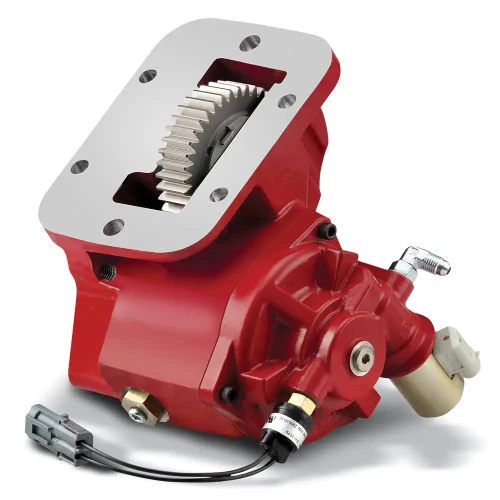

The Chelsea 249GMLLX-B232 or 249GMLLXB232 is a Power Take-Off assembly from the Chelsea 249 Series, engineered specifically for Ford Super Duty trucks equipped with the Ford 6R140 TorqShift 6 automatic transmission. The 249 Series mounts via a 6-bolt Ford pattern and is notable for its patented noise-suppression system, the only design that reduces torsional noise on this transmission application. Hydraulic PowerShift actuation is standard, with a single hose connection and integrated cartridge valve that simplifies installation and reduces leak paths. The series is rated for intermittent torque up to 200 lb-ft (271 Nm) and supports continuous operation with a 30% de-rating. Typical applications include service trucks, tow and recovery, small dump trucks, and aerial and fire and rescue equipment. Call us to confirm proper fitment for your specific build.
Features
Chelsea 249 Series PTO for Ford 6R140 TorqShift 6 automatic transmission
Patented noise-suppression system, the only quiet PTO solution for this Ford Super Duty application
Hydraulic PowerShift actuation with single hose connection and integrated cartridge valve
6-bolt Ford mounting pattern
Intermittent torque rating up to 200 lb-ft (271 Nm); continuous operation supported with 30% de-rating
Output power: 56+ HP (42 kW); shaft power rated at 57 HP at 1,488 RPM
Tech Specs
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque Rating: 200 lb-ft (271 Nm)
- Output Power: 56+ HP (42 kW)
- Shaft Power: 57 HP at 1,488 RPM
- Continuous Operation: Yes, with 30% de-rating
- Lubricant: Internal pressure lube
- Transmission Application: Ford 6R140 TorqShift 6 Automatic
- Available for 2WD and 4WD applications
Additional Information
Parts Manual: Chelsea 249 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
