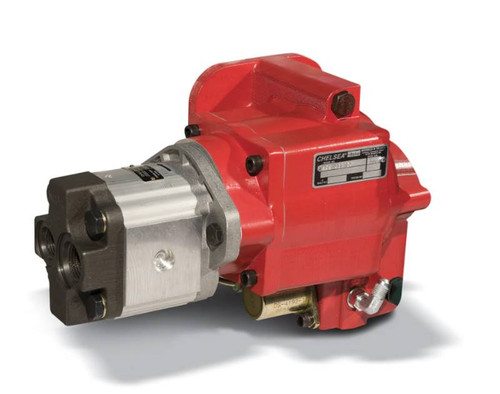

The Chelsea 252GDHVX-B5P82 or 252GDHVXB5P82 is a hydraulic-shift power take-off assembly from the Chelsea 252 Series, designed for Allison 1000/2000/2400 series automatic transmissions and RAM truck applications. It mounts with a 6-bolt pattern and delivers output through a 1-inch round shaft with a 1/4-inch key. Shaft power is rated at 11 HP (500 RPM) and 23 HP (1000 RPM). Intermittent torque is rated at 120 lb-ft (163 Nm); verify actual ratings against the application pages for your specific installation. The integrated cartridge valve and single hose connection simplify installation, and the weather-tight electrical connectors protect against the elements. Common applications include tow and recovery, dump trucks, tire service trucks, and aerial equipment. Call us to confirm proper fit for your specific transmission and chassis.
Features
Hydraulic shift, 6-bolt mounting pattern
1-inch round output shaft with 1/4-inch key
Intermittent torque: 120 lb-ft (163 Nm) - check application pages for verified ratings
Shaft power: 11 HP at 500 RPM, 23 HP at 1000 RPM
Single hose connection with integrated cartridge valve simplifies installation
Weather-tight electrical connectors and Controlled Compression Interface Gasket
Tech Specs
- Shift Type: Hydraulic
- Mounting Type: 6-Bolt
- Output Shaft Type: 1" Round with 1/4" Key
- Intermittent Torque: 120 lb-ft (163 Nm) - Check Application Pages for Actual Torque Ratings
- Output Power: 25 HP and below, 20 kW and below
- Shaft Power: 11 HP (500 RPM), 23 HP (1000 RPM), 9 kW (500 RPM), 17 kW (1000 RPM)
- Transmission Compatibility: Allison 1000/2000/2400 Series, RAM
- Continuous Operation: Yes, with 30% de-rating
