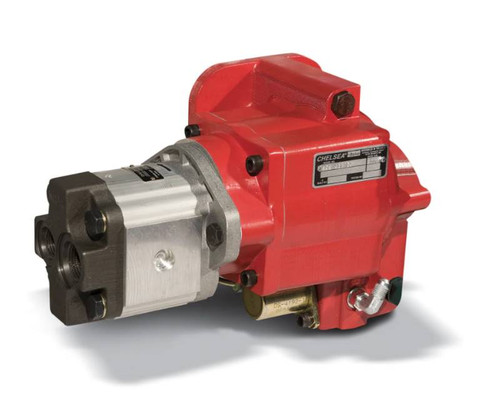

The Chelsea 252 Series Power Take-Off, part number 252GMHVX-B51462 or 252GMHVXB51462, is a hydraulic-shift PTO built for Allison 1000/2000/2400 series automatic transmissions and RAM truck applications. It mounts with a 6-bolt pattern and drives through a 1-inch round output shaft with a keyway. Intermittent torque is rated at 120 lb-ft (163 Nm); check application pages for torque ratings specific to your chassis. Shaft power output is 11 HP at 500 RPM and 23 HP at 1000 RPM. The integrated cartridge valve and single-hose connection reduce installation time, and the housing is sized to pass through a floor access panel without dropping the exhaust. Call us to confirm proper fit for your transmission and chassis.
Features
Hydraulic shift type with single hose connection and integrated cartridge valve
6-bolt mounting pattern for Allison 1000/2000/2400 and RAM automatic transmissions
1-inch round output shaft with keyway
Intermittent torque rating: 120 lb-ft (163 Nm) - verify against application pages for your specific chassis
Shaft power: 11 HP at 500 RPM, 23 HP at 1000 RPM
Weather-tight electrical connectors and Controlled Compression Interface Gasket
Tech Specs
- Shift Type: Hydraulic
- Mounting Type: 6-Bolt
- Output Shaft Type: 1" Round with Key
- Transmission Manufacturer: Allison, RAM
- Intermittent Torque: 120 lb-ft (163 Nm) - Check Application Pages for Actual Torque Ratings
- Output Power: 25 HP and below, 20 kW and below
- Shaft Power: 11 HP (500 RPM), 23 HP (1000 RPM), 9 kW (500 RPM), 17 kW (1000 RPM)
