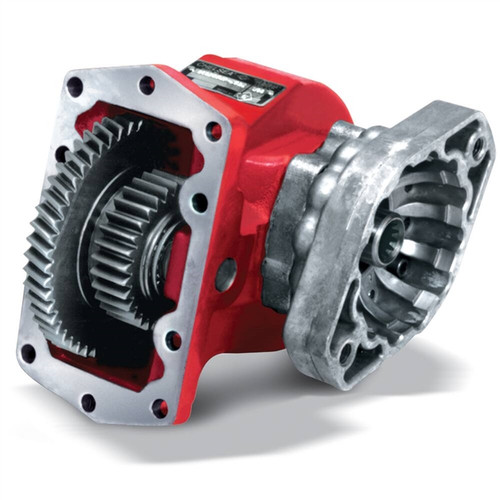

The Chelsea 267SBFJP-M3XQ or 267SBFJPM3XQ PTO assembly is a 10-bolt, constant mesh power take-off. It belongs to Chelsea's 267 Series, built for Allison automatic transmissions, and as a non-shiftable unit it supplies continuous power to load-sensing pumps. The output shaft is listed as 1-1/4" round, and 1-1/4" round with key. The series carries an intermittent torque rating of 301-400 lb-ft. On any PTO, pitted gear teeth are the first thing to check when a unit is tired, and oil seeping from the housing points to a seal or joint that needs attention. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
10-bolt mounting
Constant mesh, non-shiftable design for continuous power to load-sensing pumps
Output shaft type: 1-1/4" round, and 1-1/4" round with key
Series intermittent torque rating: 301-400 lb-ft (401-500 Nm)
Series output power: 56+ HP (41-50 kW)
Pitted gear teeth and oil seepage are the wear signs to watch on any PTO
Tech Specs
- Intermittent Torque: 301-400 lb-ft 401-500 Nm 335 (Check Application Pages for Actual Torque Ratings) lb-ft 454 (Check Application Pages for Actual Torque Ratings) Nm
- Mounting Type: 10-Bolt
- Output Power: 56+ HP 41-50 kW
- Output Shaft Type: 1-1/4" Round 1-1/4" Round w/key
- Transmission Manufacturer: Allison Other
- Shift Type: Constant Mesh
- Shaft Power: 500 RPM: 32, 1000 RPM: 64 HP 500 RPM: 24, 1000 RPM: 48 kW
- Weight: 35 lb 16 kg
