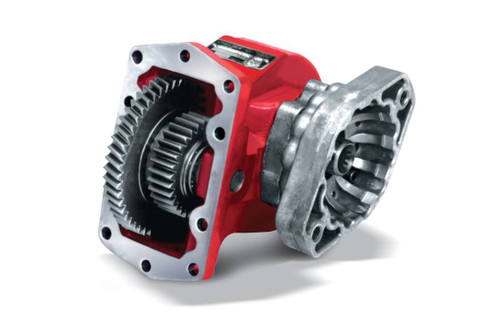

Chelsea 267SBFJP-M5TV is a 267 Series power take-off assembly built for Allison and other applications. It uses a 10-bolt mounting for a secure fit to the transmission and a constant mesh shift design. Output runs through a 1-1/4" round keyed shaft. Intermittent torque falls in the 301-400 lb-ft range, with 335 lb-ft (454 Nm) listed; check application pages for the actual torque rating on your setup. Output power is rated 56+ HP. Shaft power reaches 32 HP at 500 RPM and 64 HP at 1000 RPM. Call us to confirm proper fit for your application. Part number also written 267SBFJPM5TV.
Features
10-bolt mounting type
Constant mesh shift type
1-1/4" round output shaft with key
Intermittent torque 301-400 lb-ft, 335 lb-ft (454 Nm) listed
Output power 56+ HP; shaft power 32 HP at 500 RPM, 64 HP at 1000 RPM
Rotatable flanges to improve clearance; Super Torque gears available
Tech Specs
- INTERMITTENT TORQUE: 301-400 lb-ft 401-500 Nm 335 (Check Application Pages for Actual Torque Ratings) lb-ft 454 (Check Application Pages for Actual Torque Ratings) Nm
- MOUNTING TYPE: 10-Bolt
- OUTPUT POWER: 56+ HP 41-50 kW
- OUTPUT SHAFT TYPE: 1-1/4" Round 1-1/4" Round w/key
- TRANSMISSION MANUFACTURER: Allison Other
- SHIFT TYPE: Constant Mesh
- SHAFT POWER: 500 RPM: 32, 1000 RPM: 64 HP 500 RPM: 24, 1000 RPM: 48 kW
- WEIGHT: 35 lb 16 kg
Additional Information
Parts Manual: Chelsea 267 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
