Chelsea PTO 267 Series Parts Manual

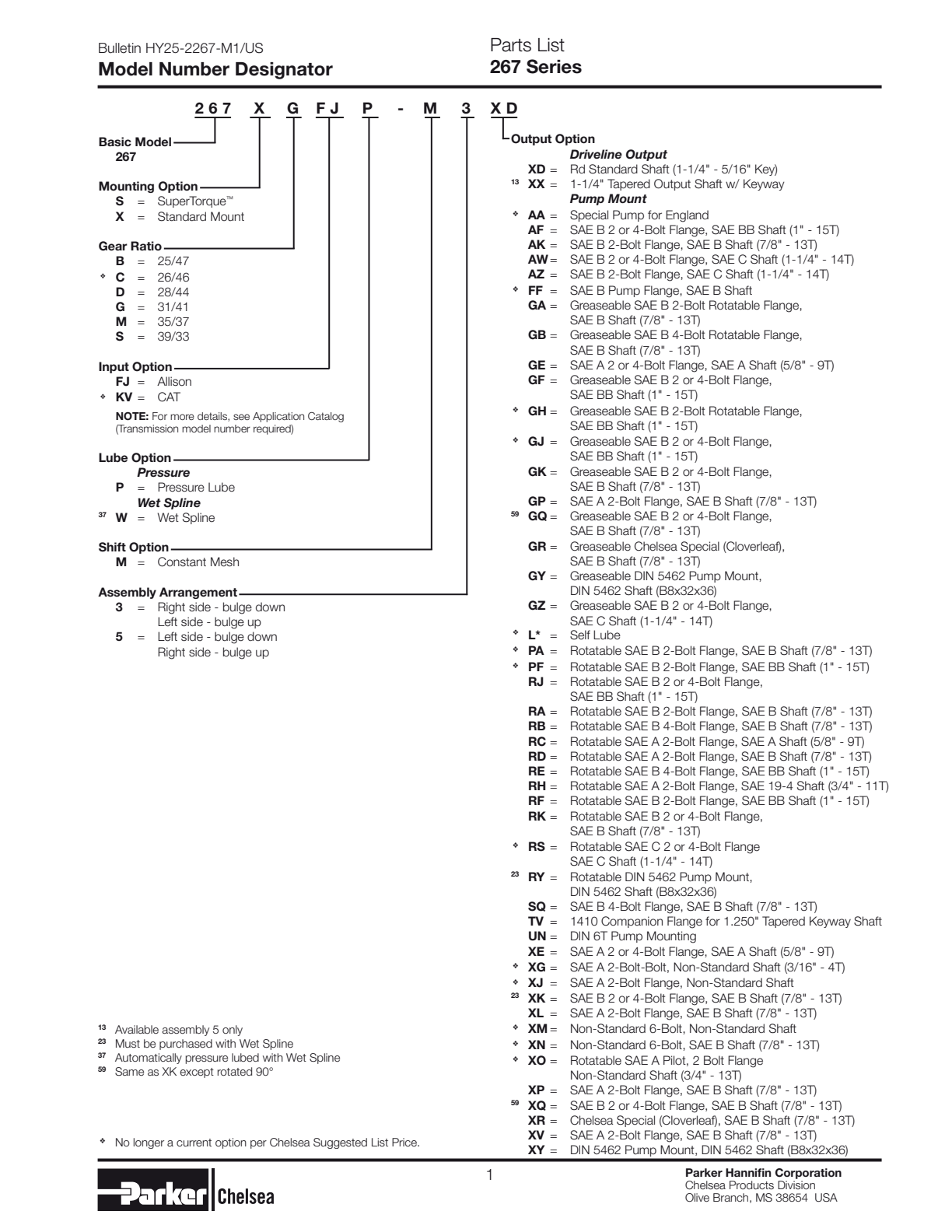

Model Number Designation
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|

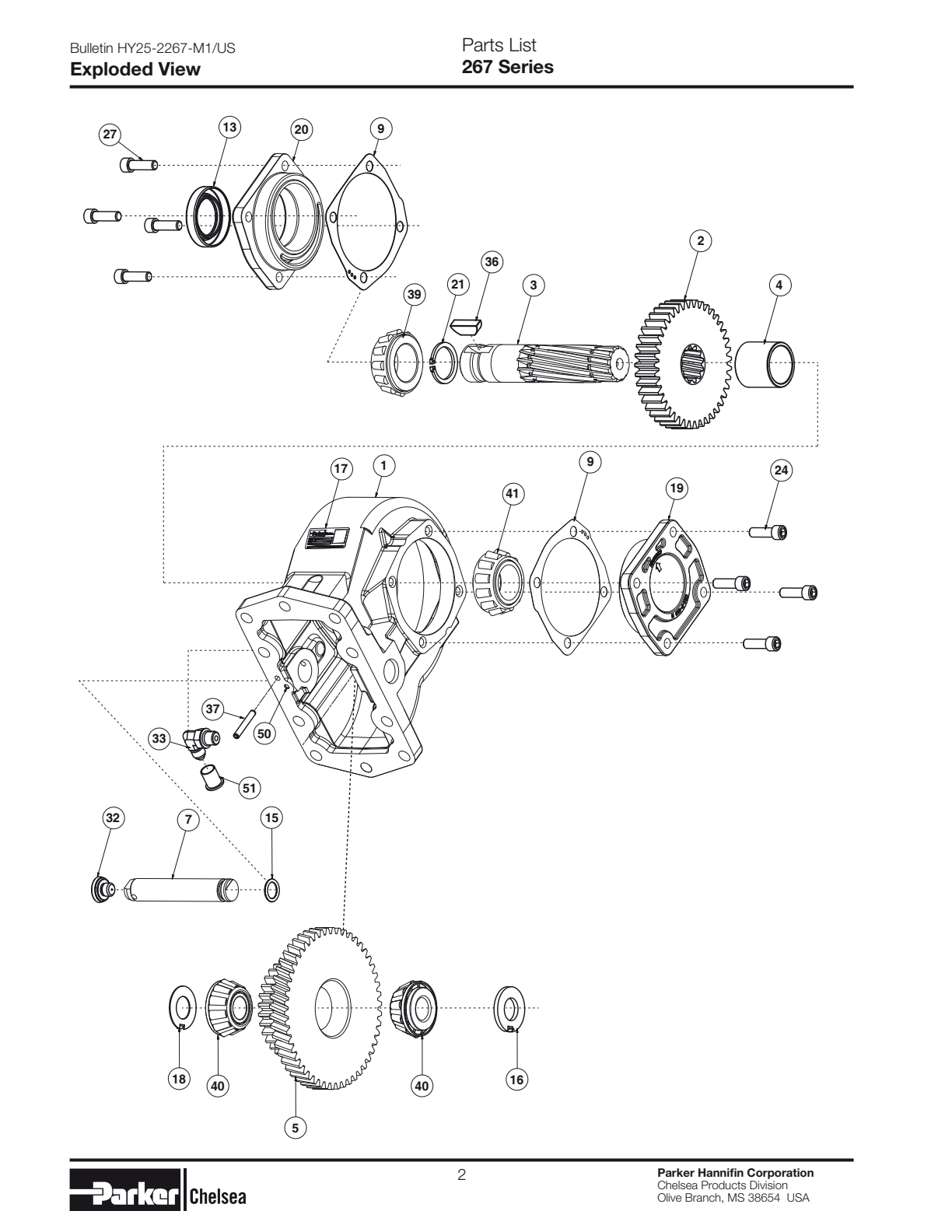

Parts List Bill Of Materials 267 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P584 | Housing | 1 | $491.27 | Add to Cart | |
| 3 | 3P202 | Standard Output Shaft (1 .250" Round) (.312 " Keyway) (xd) | 1 | $95.42 | Add to Cart | |
| 4 | 4P157 | Spacer (1 .505" X 1 .255" X 1 .361 ") | 1 | $30.66 | Add to Cart | |
| 7 | 9P91 | Idler Shaft, Pressure Lube | 1 | $81.03 | Add to Cart | |
| 9 | 22P241 | Bearing Cap Gasket (.010") | A.R. | $2.30 | Add to Cart | |
| 22P242 | Bearing Cap Gasket (.020") | A.R. | $10.49 | Add to Cart | ||
| 22P243 | Bearing Cap Gasket (.015") | A.R. | $10.49 | Add to Cart | ||
| 13 | 28P216 | Oil Seal (2 .004" X 1 .250" X .374") (xd) Oil Seal (2 .004" X 1 .250" X .374") (all) | 1 | $21.40 | Add to Cart | |
| 15 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 16 | 14P731 | Spacer (.762 " X 1 .500" X .156") | A.R. | $10.38 | Add to Cart | |
| 17 | 68P511 | Adhesive Label | 1 | — | Call for availability | |
| 18 | 31P102 | Thrust Tab Washer (.754" X .440" X .030") | 1 | $3.72 | Add to Cart | |
| 19 | 328274X | Bearing Cap Assembly, Closed End (see Output Section For G Output) | 1 | $64.09 | Add to Cart | |
| 20 | 328273X | Bearing Cap Assembly, Open End Standard Output (xd Output) | 1 | $64.09 | Add to Cart | |
| 21 | 378391 | Lockring | 1 | $2.47 | Add to Cart | |
| 24 | 3784476 | 1/4" Socket Head Cap Screw (.312 " -18 X 1 .000") (closed End Bearing Cap) | 4 | $4.33 | Add to Cart | |
| 27 | 3784476 | 1/4" Socket Head Cap Screw (.312 " -18 X 1 .000") (xd Output) (open End Bearing Cap) | 4 | $4.33 | Add to Cart | |
| 32 | 379672 | O-ring Plug (nwd) (3/16" Hex Socket Face) | 1 | $12.09 | Add to Cart | |
| 33 | 379486 | 90° Elbow (.438" -20) (p Lube Option) | 1 or | $28.97 | Add to Cart | |
| 379556 | Tee (w Lube Option) (.438" -20) | 1 | $90.82 | Add to Cart | ||
| 36 | 50000729 | Woodruff Key (xd Output) | 1 | $3.11 | Add to Cart | |
| 37 | 50059716 | Roll Pin (.188" X 1 .250") | 1 | $1.18 | Add to Cart | |
| 39 | 550397 | Tapered Bearing Cone, Open End (1 .250" X .812 ") | 1 | $36.75 | Add to Cart | |
| 40 | 550439 | Bearing Cone, Input/ratio Gear Cluster (.750" X .859") | 2 | $51.63 | Add to Cart | |
| 41 | 550532 | Tapered Bearing Cone, Closed End (1 .181 " X .812 ") | 1 | $36.75 | Add to Cart | |
| 50 | 378108 | Steel Ball | 1 | $2.40 | Add to Cart | |
| 51 | 3795642 | Thread Cap (.438") Required Continued On Next | 1 | $1.23 | Add to Cart | |
| 35P92 | Wet Spline Gasket (af Output) | A.R. | $4.35 | Add to Cart | ||
| 717086X | Stud Kit (fj Input Gear) | 1 | $84.46 | Add to Cart | ||
| 7170117X | Stud Kit (vkv Input Gear) Service Kits | 1 | $78.00 | Add to Cart | ||
| 3293371X | Bearing & Spacer Kit | 1 | $274.58 | Add to Cart | ||
| 3293372X | Gasket & Seal Kit Installation Kits | 1 | $53.84 | Add to Cart | ||
| 3289489X | Gasket & Installation Kit Hose Assemblies | 1 | $42.19 | Add to Cart | ||
| 3290572X | Hose Assembly W/ Lube (af & Ry Only) (idler Tee To Bearing Cap) | 1 or | $36.28 | Add to Cart | ||
| 3291307X | Hose Assembly W/ Lube Option (ak Only) Conversion Kits | 1 | $62.40 | Add to Cart |
Lube Options 267 Series Hose Chart Caterpillar
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379812 | - Fitting To Transmission High Oil Pto Pto Pto Trans. Trans. Pressure Valve Location Fitting Fitting Valve Hose Location Location Driver (lhs) Lhs 379812 329130-3X Driver (lhs) Rear 379486 329075-5X N/a 379486 Pass (rhs) Lhs 379812 329075-2X . Pass (rhs) Rear 379812 329075-5X . 8 O ’clock Position , 1 O ’clock Position | PTO | $16.73 | Add to Cart |

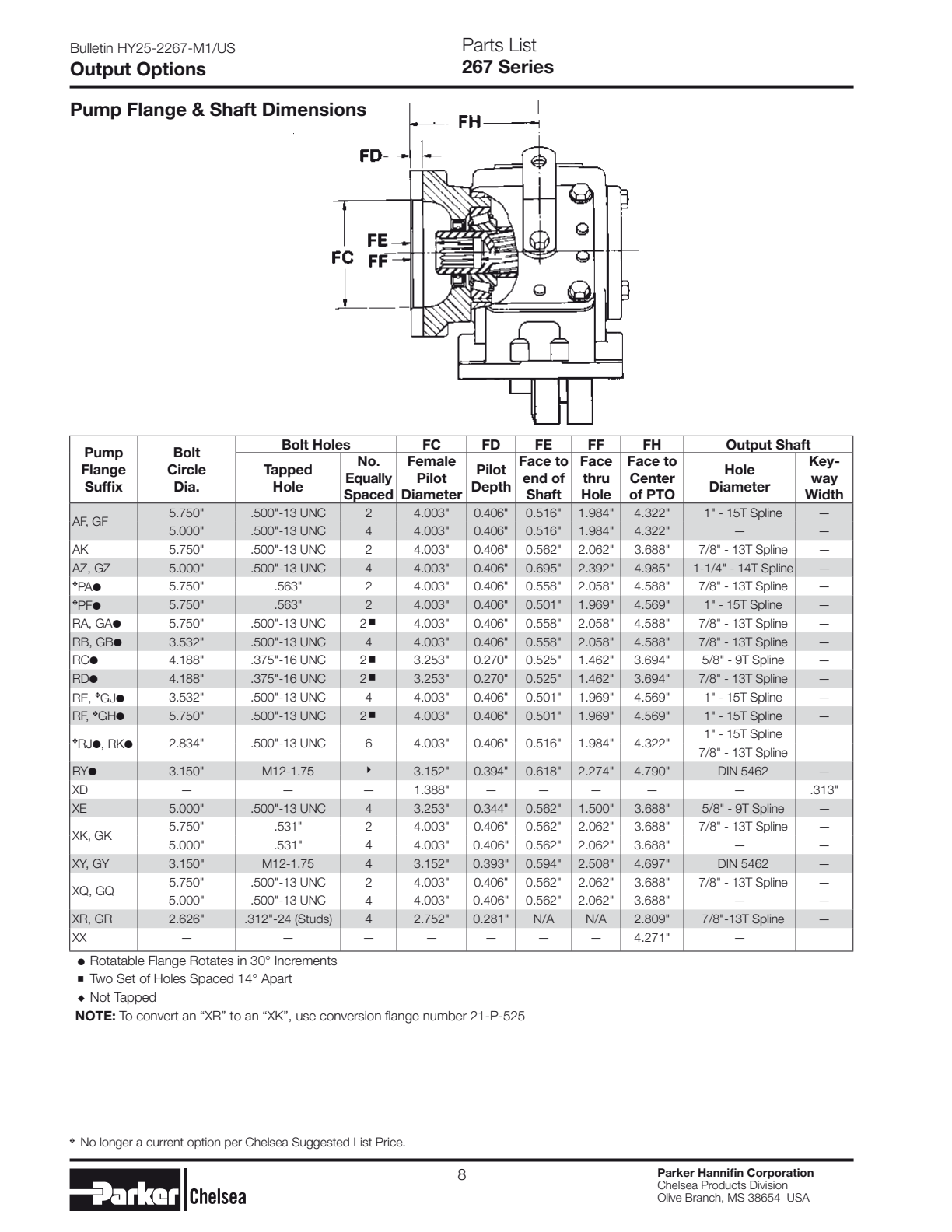

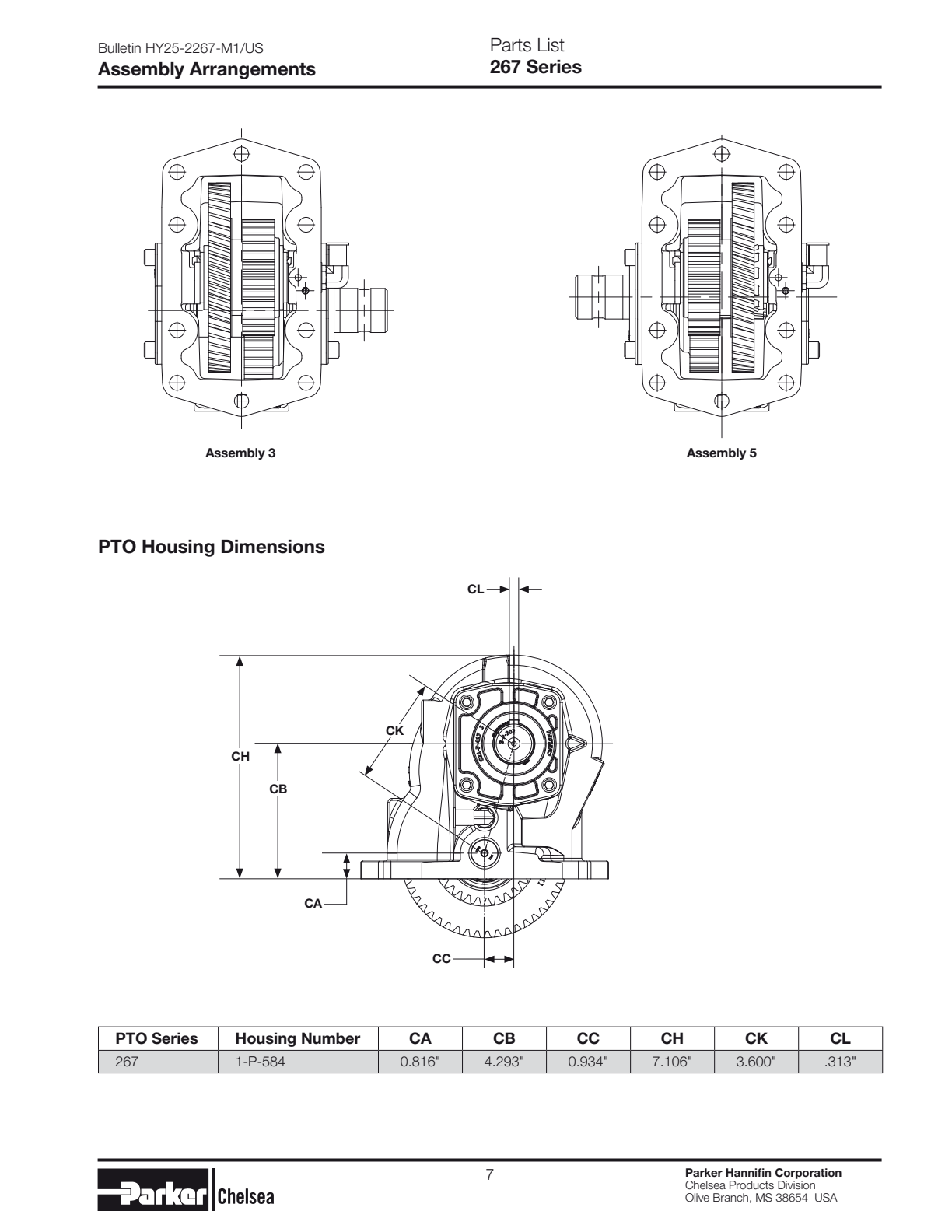

Output Options 267 Series Direct Mount Pump Conversion Kits
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32859130X | Af — Flange Type Sae B 2 Or 4-Bolt, Shaft Type 1 " 15T Spline, Conversion Xd To Af | $508.28 | Add to Cart | |||
| 32859128X | Conversion Xd To Ak | $392.52 | Add to Cart | |||
| 3294367X | Shaft Type -, Conversion Xd To Ak (b Ratio Only) | — | No longer available — call for replacement | |||
| 32859170X | Az — Flange Type Sae B 4-Bolt, Shaft Type 1 -1/4" 14T Spline, Conversion Xd To Az | $903.54 | Add to Cart | |||
| 32859172X | Conversion Xd To Ga | $591.49 | Add to Cart | |||
| 32859173X | Flange Type Greaseable Sae, B 2-Bolt, Shaft Type 7/8" 13T Spline, Conversion Xr To Ga | $405.83 | Add to Cart | |||
| 328591106X | Conversion Ra To Ga | — | Call for availability | |||
| 32859174X | Conversion Xd To Gb | $591.49 | Add to Cart | |||
| 32859175X | Flange Type Greaseable Sae, B 4-Bolt, Shaft Type 7/8" 13T Spline, Conversion Xr To Gb | — | No longer available — call for replacement | |||
| 328591107X | Conversion Rb To Gb | $428.82 | Add to Cart | |||
| 32859171X | Conversion Xd To Gf | $845.87 | Add to Cart | |||
| 328591108X | Flange Type Greaseable Sae, Bb 2 Or 4-Bolt, Shaft Type 1 " 15T Spline, Conversion Af To Gf | $576.41 | Add to Cart | |||
| 328591114X | Conversion Rf To Gf | $592.43 | Add to Cart | |||
| 328591116X | Flange Type Greaseable Sae, B 2-Bolt, Shaft Type 1 " 15T Spline, Conversion Xd To Gh | $864.02 | Add to Cart | |||
| 328591138X | Conversion Xd To Gj | $864.02 | Add to Cart | |||
| 32859189X | Conversion Xd To Gk | $569.55 | Add to Cart | |||
| 32859186X | Shaft Type -, Conversion Xk To Gk | $554.78 | Add to Cart | |||
| 32859191X | Conversion Xd To Gq | $626.74 | Add to Cart | |||
| 32859176X | Flange Type Greaseable Chelsea, Special 4-Bolt, Shaft Type 7/8" 13T Spline, Conversion Xd To Gr | — | No longer available — call for replacement | |||
| 32859192X | Conversion Xd To Gy | $700.87 | Add to Cart | |||
| 32859187X | Conversion Xy To Gy | — | Call for availability | |||
| 32859193X | Conversion Xd To Gz | $808.83 | Add to Cart | |||
| 32859188X | Shaft Type -, Conversion Az To Gz | $561.97 | Add to Cart | |||
| 328591143X | Vpa — Flange Type Rotatable Sae, B 2-Bolt, Shaft Type 7/8" 13T Spline, Conversion Xd To Pa | $221.71 | Add to Cart | |||
| 328591142X | Vpf — Flange Type Sae B 2-Bolt, Shaft Type 1 " 15T Spline, Conversion Xd To Pf | — | No longer available — call for replacement | |||
| 32859155X | Conversion Xd To Ra | $382.35 | Add to Cart | |||
| 3294361X | Ra — Flange Type Rotatable Sae, B 2-Bolt, Shaft Type 7/8" 13T Spline, Conversion Xd To Ra (b Ratio Only) | $245.24 | Add to Cart | |||
| 32859153X | Conversion Xr To Ra | $122.93 | Add to Cart | |||
| 32859156X | Conversion Xd To Rb | $382.35 | Add to Cart | |||
| 3294362X | Rb — Flange Type Rotatable Sae, B 4-Bolt, Shaft Type 7/8" 13T Spline, Conversion Xd To Rb (b Ratio Only) | $243.61 | Add to Cart | |||
| 32859154X | Conversion Xr To Rb | $122.93 | Add to Cart | |||
| 328591112X | Rc — Flange Type Rotatable Sae, A 2-Bolt, Shaft Type 5/8" 9T Spline, Conversion Xd To Rc | — | Call for availability | |||
| 328591113X | Conversion Xd To Rd | $1,002.61 | Add to Cart | |||
| 3294368X | Shaft Type -, Conversion Xd To Rd (b Ratio Only) | $656.83 | Add to Cart | |||
| 328591134X | Re — Flange Type Rotatable Sae, B 4-Bolt, Shaft Type 1 " 15T Spline, Conversion Xd To Re | $583.72 | Add to Cart | |||
| 32859178X | Rf — Flange Type Rotatable Sae, B 2-Bolt, Shaft Type 1 " 15T Spline, Conversion Xd To Rf | $586.51 | Add to Cart | |||
| 328591162X | Rj — Flange Type Rotatable Sae, B 2 Or 4-Bolt, Shaft Type 1 " 15T Spline, Conversion Xd To Rj | $842.39 | Add to Cart | |||
| 328591160X | Conversion Xd To Rk (wet Spline Only) | $798.44 | Add to Cart | |||
| 328591159X | Shaft Type -, Conversion Xd To Rk (dry Spline Only) | $413.11 | Add to Cart | |||
| 328591131X | Ry — Flange Type Rotatable Din, 5462 Pump Mount, Shaft Type Din 5462 Shaft (B8x32x36), Conversion Xd To Ry | $1,115.57 | Add to Cart | |||
| 32859127X | Xe — Flange Type Sae A 2 Or 4-Bolt, Shaft Type 5/8" 9T Spline, Conversion Xd To Xe | $402.60 | Add to Cart | |||
| 32859116X | Conversion Xd To Xk | $357.11 | Add to Cart | |||
| 3294363X | Shaft Type -, Conversion Xd To Xk (b Ratio Only) | $319.28 | Add to Cart | |||
| 32859117X | Conversion Xd To Xq | $357.11 | Add to Cart | |||
| 3294366X | Shaft Type -, Conversion Xd To Xq (b Ratio Only) | — | No longer available — call for replacement | |||
| 32859152X | Xr — Flange Type Chelsea Special, 4-Bolt, Shaft Type 7/8" 13T Spline, Conversion Xd To Xr | $260.80 | Add to Cart | |||
| 328591122X | Xx — Flange Type Sae Tapered, Shaft, Shaft Type 1 -1/4" W/ 5/16" Key, Conversion Xd To Xx | $639.97 | Add to Cart | |||
| 328591121X | Xy — Flange Type Din 5462 Pump, Mount, Shaft Type Din 5462 (B8x32x36), Conversion Xd To Xy | $710.56 | Add to Cart |

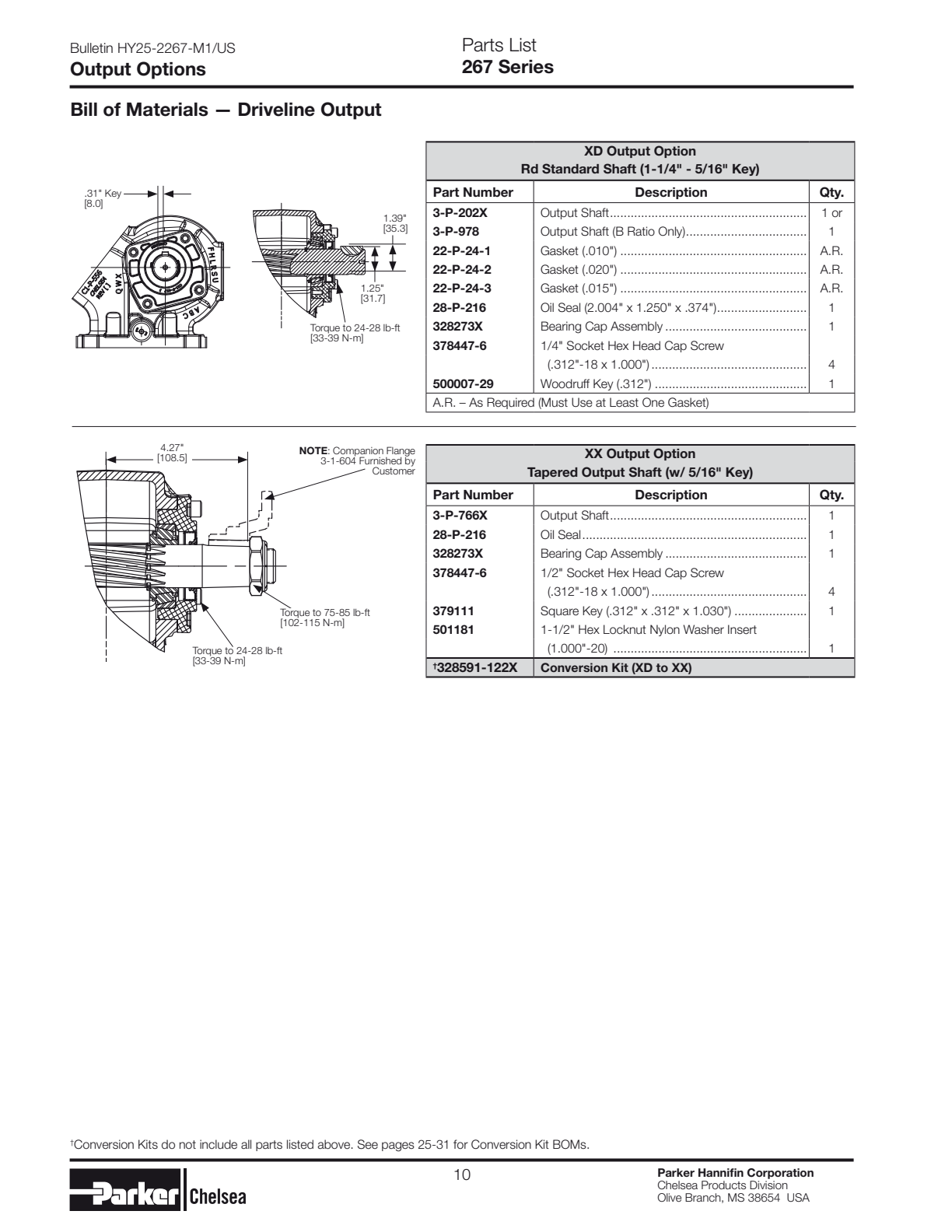

Output Options 267 Series Bill Of Materials Pump Mount Output
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Output Options 267 Series Bill Of Materials Pump Mount Output (Continued)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 12624XM121 | .75 Thd [63.7] V† 328591 -87X Conversion Kit (xy To Gy) 4.99" | — | Call for availability | |||
| 180190 | Lb-ft | — | Call for availability | |||
| 244257 | N-m] [95.3] † 328591 -132X Conversion Kit (xd To Ry) (wet Spline) | — | Call for availability | |||
| 7813T | (.312 " -18 X 1 .500") † 328591 -16X Conversion Kit (xd To Xk) † 328591 -157X Conversion Kit (xd To Xk) (wetspline) † 329436-3X Conversion Kit (xd To Xk) (b Ratio Only) 3.69" Xq Output Option [93.7] | 4 | — | Call for availability | ||
| 26378 | - 13T 2.81 " | — | Call for availability |

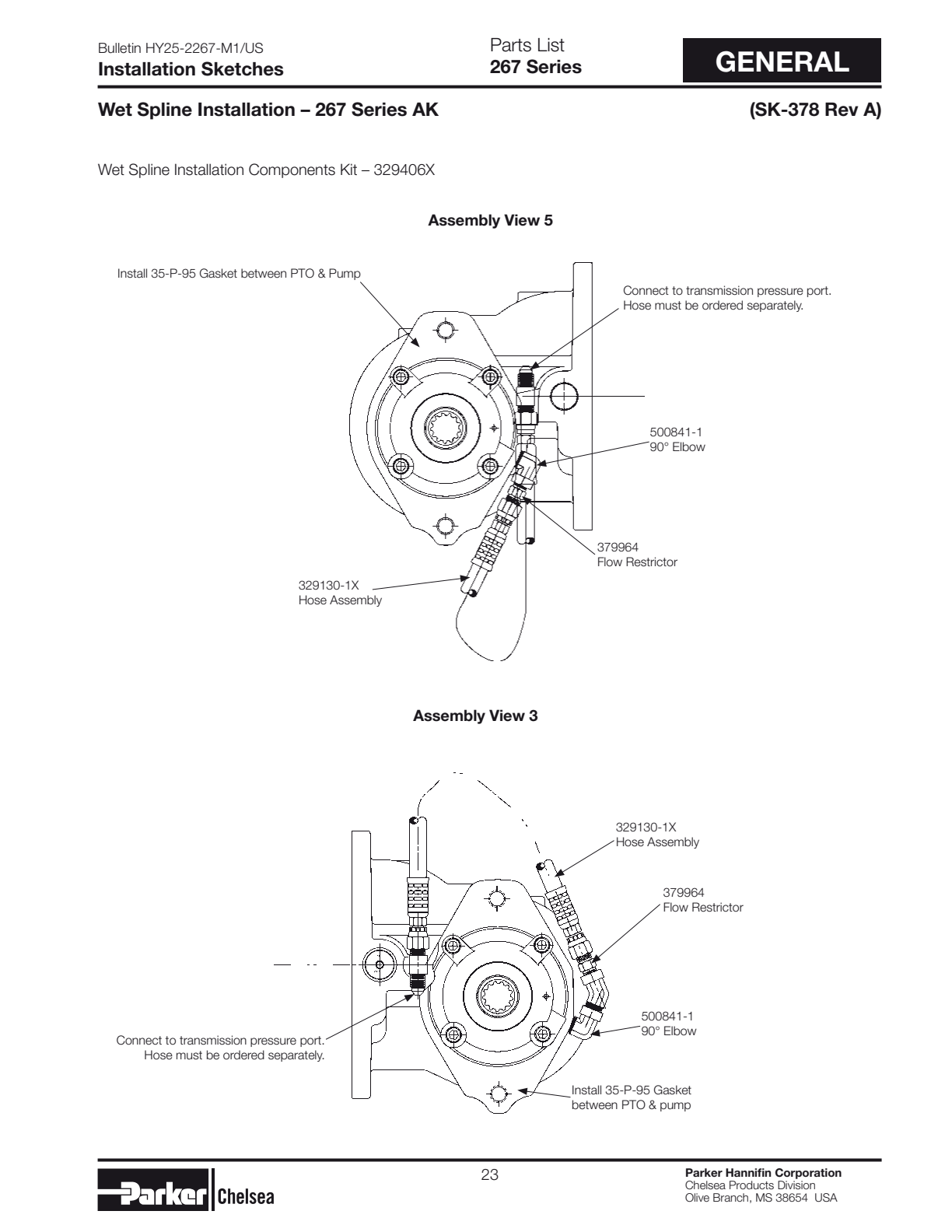

Parts List Kits Bill Of Materials 267 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| M1015 | X 1 .378") 8 379672 Nwd Socket Face O-ring Plug | 1 | — | Call for availability |
Additional Parts Listed In This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3-P-202X | Output Shaft 1 Or | — | Call for availability | |||
| 3-P-766X | Output Shaft | 1 | — | Call for availability | ||
| 501181 | 1-1/2" Hex Locknut Nylon Washer Insert | — | No longer available — call for replacement | |||
| 3-P-854X | Output Shaft | 1 | $599.82 | Add to Cart | ||
| 28-P-219 | Oil Seal | 1 | $28.20 | Add to Cart | ||
| 329088X | Bearing Cap Assembly (dry Spline) | 1 | $363.17 | Add to Cart | ||
| 329658X | Cover Kit (wet Spline Only) | 1 | $157.74 | Add to Cart | ||
| 378447-10 | 1/4" Socket Hex Head Cap Screw | $4.45 | Add to Cart | |||
| 3-P-282X | Output Shaft 1 Or | $187.84 | Add to Cart | |||
| 3-P-979X | Output Shaft (b Ratio Only) | 1 | — | Call for availability | ||
| 329381X | Bearing Cap Assembly (wet Spline) | 1 | $499.08 | Add to Cart | ||
| 378447-8 | 1/4" Socket Hex Head Cap Screw | $2.32 | Add to Cart | |||
| 28-P-275 | Oil Seal | 1 | $37.46 | Add to Cart | ||
| 329052X | Bearing Cap Assembly | 1 | $613.82 | Add to Cart | ||
| 378447-11 | 1/4" Socket Hex Head Cap Screw | $7.47 | Add to Cart | |||
| 3-P-923X | Ga, Gb, Gr, Gl Output Shaft 1 Or | $655.03 | Add to Cart | |||
| 3-P-921X | Gf Output Shaft 1 Or | $860.23 | Add to Cart | |||
| 3-P-933X | Gq, Gk, Gp Output Shaft 1 Or | $581.33 | Add to Cart | |||
| 3-P-938X | Gy Output Shaft 1 Or | $819.60 | Add to Cart | |||
| 3-P-939X | Gz Output Shaft 1 Or | $873.79 | Add to Cart | |||
| 3-P-941X | Gh, Gj Output Shaft 1 Or | $1,076.84 | Add to Cart | |||
| 3-P-981X | Ge Output Shaft | 1 | $512.42 | Add to Cart | ||
| 28-P-268 | Oil Seal | 1 | $69.47 | Add to Cart | ||
| 3-P-980X | Output Shaft (b Ratio Only) | 1 | — | Call for availability | ||
| 21-P-628 | Pump Flange (ship Loose With Unit) | 1 | $100.24 | Add to Cart | ||
| 328170-207X | Cap Screw Bag Kit | 1 | $9.52 | Add to Cart | ||
| 329195X | Rotatable Bearing Cap Assembly | 1 | $132.25 | Add to Cart | ||
| 21-P-572 | Pump Flange 4-Bolt (ship Loose With Unit) | 1 | $114.69 | Add to Cart | ||
| 21-P-654 | Pump Flange | 1 | $88.51 | Add to Cart | ||
| 328388X | Flange | 1 | — | Call for availability | ||
| 329825X | Wet Spline Loose Parts Kit | 1 | $164.06 | Add to Cart | ||
| 379673 | Hex Shoulder Screw (.312"-24) | 4 | $12.77 | Add to Cart | ||
| 3-P-283 | Output Shaft | 1 | $100.95 | Add to Cart | ||
| 21-P-661 | Pump Flange | 1 | $294.15 | Add to Cart | ||
| 3-P-924X | Output Shaft | 1 | — | Call for availability | ||
| 329264X | Bearing Cap Assembly | 1 | $164.26 | Add to Cart | ||
| 28-P-271 | O-ring | 1 | $28.61 | Add to Cart | ||
| 3-P-800X | Output Shaft | 1 | $360.43 | Add to Cart | ||
| 21-P-638 | Pump Flange (ship Loose With Unit) | 1 | $643.81 | Add to Cart | ||
| 328170-210X | Cap Screw Bag Kit | 1 | $47.78 | Add to Cart | ||
| 21-P-626 | Pump Flange | 1 | $115.30 | Add to Cart | ||
| 329656X | Bearing Cap Assembly | 1 | $408.56 | Add to Cart | ||
| 379231 | Thread Pipe Plug (.125"-27) | 1 | $1.50 | Add to Cart | ||
| 379740-6 | 1/4" Socket Hex Head Cap Screw | $11.57 | Add to Cart | |||
| 69-P-18 | Wet Spline Tag | 1 | $6.83 | Add to Cart | ||
| 21-P-734 | Pump Flange | 1 | $382.49 | Add to Cart | ||
| 329681X | Installation Kit (wet Spline | 1 | — | Call for availability | ||
| 21-P-625 | Pump Flange (ships Loose With Unit) | 1 | $317.28 | Add to Cart | ||
| 329355-1X | Standard Loose Parts Kit | 1 | $116.34 | Add to Cart | ||
| 329355-2X | Wet Spline Loose Parts Kit | 1 | $198.76 | Add to Cart | ||
| 22-P-100 | Gasket (in Loose Parts) | 1 | $11.50 | Add to Cart | ||
| 329273X | Bearing Cap Assembly | 1 | $287.83 | Add to Cart | ||
| 379111 | Square Key | 1 | $23.18 | Add to Cart | ||
| 379824 | Companion Flange | 1 | $306.24 | Add to Cart | ||
| 380487 | Thin Hex Locknut (1 .000"-20) | 1 | $28.10 | Add to Cart | ||
| 328328X | Bearing Cap Assembly | 1 | $318.47 | Add to Cart | ||
| 329824X | Bearing Cap Assembly (wet Spline) | 1 | $220.74 | Add to Cart | ||
| 328589X | Bearing Cap Assembly | 1 | $324.47 | Add to Cart | ||
| 3-P-283X | Output Shaft | 1 | $187.84 | Add to Cart | ||
| 329194X | Bearing Cap Assembly | 1 | $135.04 | Add to Cart | ||
| 379063 | Flat Washer | 4 | $2.70 | Add to Cart | ||
| 3-P-768X | Output Shaft | 1 | $728.64 | Add to Cart | ||
| 3-P-1224 | Output Shaft (b Ratio Only) | 1 | $1,025.10 | Add to Cart | ||
| 329234X | Bearing Cap Assembly | 1 | $674.37 | Add to Cart | ||
| 379896 | Pipe Adapter | $59.98 | Add to Cart | |||
| 500841-1 | 379556 Tee | $9.09 | Add to Cart | |||
| 379451 | Pilot Screw (M10-1 .5 X .984") | 2 | $7.23 | Add to Cart | ||
| 379453-10 | Ferry Cap Screw | $6.86 | Add to Cart | |||
| 35-P-74 | 10-Bolt Gasket | 1 | $7.13 | Add to Cart | ||
| 329337-4X | Wet Spline Conversion Kit | $121.37 | Add to Cart | |||
| 35-P-120 | Wet Spline Gasket (.082") | 1 | $35.33 | Add to Cart | ||
| 3-P-282 | Output Shaft (7/8" 13T) | 1 | $187.84 | Superseded by 3P282XAdd to Cart | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 328333X | Flange Assembly | 1 | $239.73 | Add to Cart | ||
| 379085-2 | Instruction Label | 1 | $4.02 | Add to Cart | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379688 | Spline Lubricant | 1 | $8.98 | Add to Cart | ||
| 3-P-800 | Output Shaft (5/8" 9T) | 1 | $319.56 | Add to Cart | ||
| 328989X | Flange Assembly | 1 | $378.21 | Add to Cart | ||
| 379638 | Field Conversion Tag | 1 | $3.08 | Add to Cart | ||
| 3-P-844 | Output Shaft | 1 | $750.67 | Add to Cart | ||
| 328711X | Pump Mount Kit | 1 | $14.26 | Add to Cart | ||
| 330117X | Bearing Cap & Cup Assembly 6-Bolt | 1 | — | Call for availability | ||
| 379819 | Grease Fitting Cap | 1 | $2.07 | Add to Cart | ||
| 500168-2 | Lube Fitting (zerk) | 1 | $6.59 | Add to Cart | ||
| 3-P-933 | Output Shaft | 1 | — | Call for availability | ||
| 3-P-938 | Output Shaft | 1 | $713.34 | Add to Cart | ||
| 3-P-939 | Output Saft Gz | 1 | $412.43 | Add to Cart | ||
| 3-P-921 | Output Shaft Gf | 1 | $860.23 | Add to Cart | ||
| 329322X | Bearing Cap Assembly | 1 | $744.53 | Add to Cart | ||
| 378446-4 | Socket Head Cap Screw | $5.98 | Add to Cart | |||
| 328591-129X | Conversion Kit (xd To Af) (wet Spline) | $825.00 | Add to Cart | |||
| 3-P-854 | Output Shaft | 1 | $599.82 | Add to Cart | ||
| 329350X | Bearing Cap Assembly | 1 | $682.80 | Add to Cart | ||
| 3-P-768 | Output Shaft | 1 | $728.64 | Superseded by 3P768XAdd to Cart | ||
| 329356X | Bearing Cap Assembly | 1 | $774.79 | Add to Cart | ||
| 328591-132X | Conversion Kit (xd To Ry) (wet Spline) | $1,207.31 | Add to Cart | |||
| 3-P-924 | Output Shaft | 1 | $733.31 | Add to Cart | ||
| 3-P-766 | Output Shaft | 1 | $787.30 | Add to Cart | ||
| 328591-141X | Conversion Kit (xd To Ak) (wet Spline) | $799.64 | Add to Cart | |||
| 329406X | Wet Spline Loose Parts Kit | 1 | $91.86 | Add to Cart | ||
| 378447-7 | Socket Head Cap Screw | $5.55 | Add to Cart | |||
| 329130-1X | Hose | 1 | $87.33 | Add to Cart | ||
| 329057-4X | Pressure Lube Hose | 1 | $45.49 | Add to Cart | ||
| 22-P-126 | Gasket | 1 | $21.29 | Add to Cart | ||
| 328591-157X | Conversion Kit (xd To Xk) (wet Spline) | $675.97 | Add to Cart | |||
| 3-P-980 | Output Shaft (7/8" 13T) | 1 | $206.00 | Add to Cart | ||
| 3-P-979 | Output Shaft 7/8" | 1 | $227.80 | Add to Cart |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Chelsea PTO 267 — every part in the manual, matched to our live inventory. We stock 170 of the 198 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
