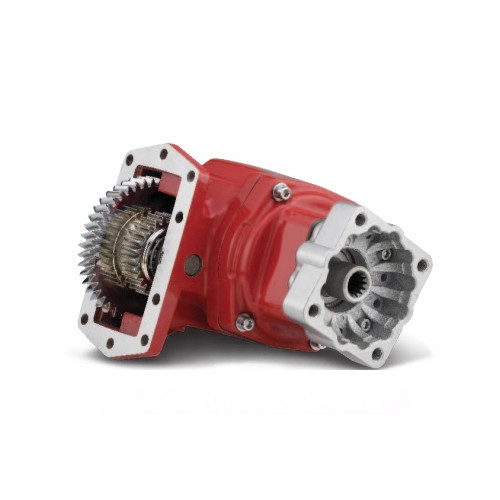

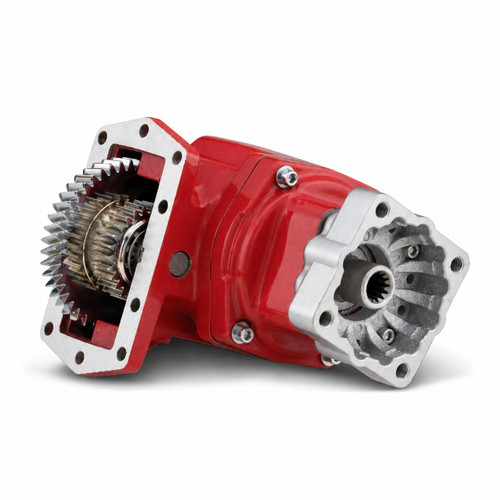

The Chelsea 267XGFJP-M5RA or 267XGFJPM5RA is a 267 Series power take-off assembly designed for Allison and other automatic transmissions. It mounts via a 10-bolt pattern and uses a constant mesh shift type, delivering up to 335 lb-ft (454 Nm) of intermittent torque. Output is through a 1-1/4" round shaft with keyway, and shaft power reaches 64 HP at 1,000 RPM. The flanges are rotatable to improve installation clearance, and shaft options include wet spline or greaseable configurations to extend service life on both the PTO and pump shaft. Super Torque gears are available for applications requiring additional output power. Call us to confirm proper fitment for your specific transmission and application.
Features
10-bolt mounting pattern for Allison and compatible automatic transmissions
Constant mesh shift type
1-1/4" round output shaft with keyway
Intermittent torque rating: 335 lb-ft (454 Nm) - verify actual rating on Chelsea application pages
Shaft power: 32 HP at 500 RPM, 64 HP at 1,000 RPM
Rotatable flanges for improved installation clearance
Wet spline or greaseable shaft options to extend PTO and pump shaft service life
Tech Specs
- INTERMITTENT TORQUE: 335 lb-ft (454 Nm) - Check Chelsea Application Pages for Actual Torque Ratings
- MOUNTING TYPE: 10-Bolt
- SHIFT TYPE: Constant Mesh
- OUTPUT SHAFT TYPE: 1-1/4" Round with Keyway
- TRANSMISSION MANUFACTURER: Allison and Other
- SHAFT POWER: 32 HP (24 kW) at 500 RPM; 64 HP (48 kW) at 1,000 RPM
- OUTPUT POWER: 56+ HP (41-50 kW)
