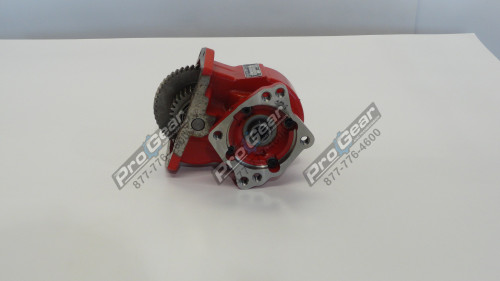

The Chelsea 267XGFJP-M5RC or 267XGFJPM5RC is a 10-bolt, constant mesh power take-off from the Chelsea 267 Series, engineered specifically for Allison automatic transmissions. This PTO delivers an intermittent torque rating in the 301-400 lb-ft range (check application pages for the actual rating for your configuration) and shaft power of 32 HP at 500 RPM or 64 HP at 1,000 RPM. The output shaft is a 1-1/4" round shaft with keyway. A 360-degree rotatable output flange gives you clearance flexibility in tight installations, and the optional SuperTorque gears add up to 20% more torque capacity over a standard 267 Series unit. Wet spline or greaseable shaft options help extend both PTO and pump shaft service life. Typical applications include yard jockey trucks, small refuse trucks, and snow and ice equipment. Call us to confirm proper fit for your specific transmission and pump configuration.
Features
10-bolt mounting pattern designed for Allison automatic transmissions
Constant mesh (non-shiftable) operation suits continuous-duty mobile hydraulic applications
1-1/4" round output shaft with keyway
Intermittent torque: 301-400 lb-ft (check application pages for the rating specific to this configuration)
Shaft power: 32 HP at 500 RPM, 64 HP at 1,000 RPM
360-degree rotatable output flange for installation clearance flexibility
Tech Specs
- INTERMITTENT TORQUE: 301-400 lb-ft / 401-500 Nm (335 lb-ft / 454 Nm - check application pages for actual torque rating)
- MOUNTING TYPE: 10-Bolt
- SHIFT TYPE: Constant Mesh
- TRANSMISSION MANUFACTURER: Allison
- OUTPUT SHAFT TYPE: 1-1/4" Round with Key
- OUTPUT POWER: 56+ HP / 41-50 kW
- SHAFT POWER: 32 HP at 500 RPM; 64 HP at 1,000 RPM (24 kW at 500 RPM; 48 kW at 1,000 RPM)
