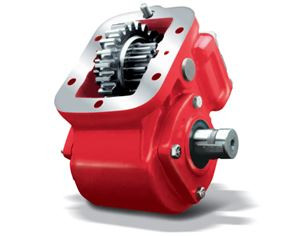

Stock photo not actual item

267XMFJP-M5GK Chelsea PTO Assembly

Chelsea

Listing Price: $3,562.53
Sale Price: $1,959.39

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL267XMFJPM5GK
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 267 Series Power Take-Off Assembly, part number 267XMFJP-M5GK or 267XMFJPM5GK, is a 10-bolt constant mesh PTO engineered for Allison and compatible automatic transmissions. It delivers up to 335 lb-ft (454 Nm) intermittent torque and shaft power of 32 HP at 500 RPM and 64 HP at 1,000 RPM, making it a capable choice for variable-displacement piston pump applications such as refuse trucks, snow and ice equipment, and yard jockey trucks. The 1-1/4" round output shaft with keyway provides a solid connection to hydraulic pumps. Chelsea's 360-degree rotatable flange design helps clear tight installation spaces, and the wet spline lubrication option extends service life for both the PTO and the pump shaft. A genuine Chelsea part, available from Pro Gear and Transmission. Call us to confirm proper fit for your specific transmission and application.

Features

10-bolt mounting pattern fits Allison and compatible automatic transmissions
Constant mesh (non-shiftable) design suits continuous-duty mobile applications
Intermittent torque rating: 335 lb-ft (454 Nm) - check application pages for actual torque ratings
Shaft power: 32 HP at 500 RPM, 64 HP at 1,000 RPM
1-1/4" round output shaft with keyway
360-degree rotatable flange aids installation clearance; SuperTorque gear option adds up to 20% more torque capacity; wet spline or greaseable shaft option extends service life

Tech Specs

  • Shift Type: Constant Mesh
  • Mounting Type: 10-Bolt
  • Transmission Manufacturer: Allison and compatible automatic transmissions
  • Intermittent Torque: 335 lb-ft / 454 Nm (Check Application Pages for Actual Torque Ratings)
  • Output Power: 56+ HP / 41-50 kW
  • Shaft Power: 32 HP at 500 RPM, 64 HP at 1,000 RPM / 24 kW at 500 RPM, 48 kW at 1,000 RPM
  • Output Shaft Type: 1-1/4" Round with Key
  • Continuous Operation: Yes, with 30% de-rating

Additional Information

Chelsea PTO 267 Series Model Break Down
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
