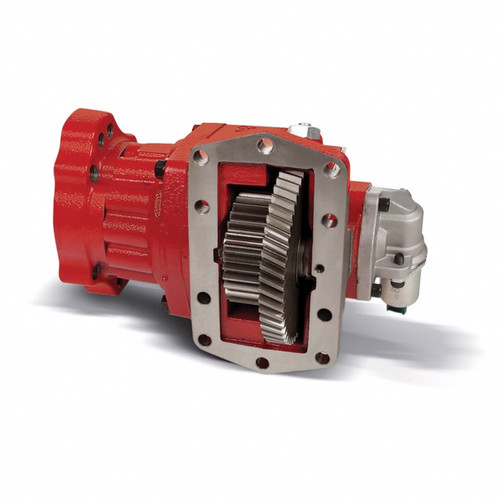

The Chelsea 281 Series Power Take-Off, part number 281GBFJP-B8RF or 281GBFJPB8RF, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, commonly found on Allison transmissions. The 281 Series is an evolution of the 280 Series platform, adding a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap for improved clamp load, and an 80% thicker steel clutch pack to resist premature tooth wear. Nine speed ratios cover both low and high ranges. The wet spline lubrication option extends shaft service life by 7 to 10 times. SmartStart reduces shock load at engagement, and Electronic Overspeed Control (EOC) safeguards driven equipment. Applications include fire and rescue, refuse, truck crane, and pumper-cleaner trucks. Call us to confirm proper fit for your transmission and output configuration.
Features
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring seal between housing and bearing cap reduces vibrational effects and improves clamp load
80% thicker steel discs in the clutch pack to resist premature tooth wear
Nine speed ratios, including low and high ranges
Wet spline lubrication option provides 7 to 10 times greater shaft service life
Electronic Overspeed Control (EOC) and SmartStart shock-load reduction included
Tech Specs
- Mounting: 10-Bolt
- Shift Type: PowerShift (Hydraulic) - Hot Shift
- Compatible Transmission: Allison automatic transmissions
- Speed Ratios: Nine ratios, including low and high
- Wet Spline Lubrication Option: Yes - 7 to 10x greater shaft life
- SmartStart: Yes
- Electronic Overspeed Control (EOC): Yes
- Continuous Operation: Yes
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
