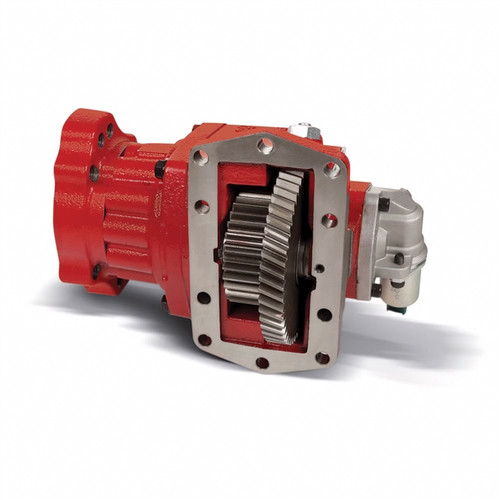

281GDFJP-G5SD Chelsea PTO Assembly

The Chelsea 281GDFJP-G5SD or 281GDFJPG5SD is a hydraulically shifted, hot-shift power take-off from the Chelsea 281 Series, engineered for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar units. The 281 Series is an evolution of the proven 280 Series, incorporating a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and clutch pack steel discs that are 80% thicker than the predecessor design. Nine speed ratios span both low and high ranges. Rotatable cast-iron flanges reduce interference issues at pump mounting. A Wet Spline Lubrication option provides 7 to 10 times greater shaft life. Electronic Overspeed Control (EOC) and SmartStart are available to protect driven equipment and reduce start-up shock loads. Call us to confirm proper fit for your specific transmission and application.

Features

Chelsea 281 Series hydraulic hot-shift (PowerShift) PTO for 10-bolt automatic transmissions including Allison and Caterpillar
Ductile iron bearing cap, 117% stronger than gray iron, for improved durability against vibrational stress
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Enhanced clutch pack with steel discs 80% thicker than the 280 Series predecessor to resist premature tooth wear
Nine speed ratios covering low and high speeds; continuous-duty single torque rating
Wet Spline Lubrication option provides 7 to 10 times greater shaft life; Positive Stop on driveline outputs eliminates oil seal damage from coupling
SmartStart reduces shock load at start-up; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

• Mounting Type: 10-Bolt aperture (Allison and Caterpillar automatic transmissions)
• Shift Type: PowerShift (Hydraulic hot-shift)
• Continuous Operation: Yes
• Speed Ratios: Nine, including low and high speeds
• Continuous Torque (series rating): 390 lb-ft (529 Nm) - verify actual rating on application pages
• Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
• Wet Spline Lubrication: Optional - provides 7 to 10 times greater shaft life
• SmartStart: Available for shock-load reduction at start-up
• Electronic Overspeed Control (EOC): Included for driven-equipment protection
• Part Number: 281GDFJP-G5SD or 281GDFJPG5SD

Additional Information

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
