Chelsea PTO Assembly P/N: 281GGFJW-G3RY or 281GGFJWG3RY

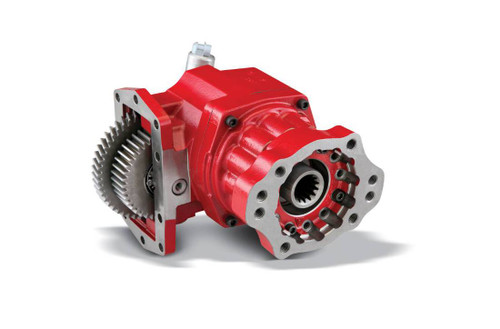

281GGFJW-G3RY Chelsea PTO Assembly

Chelsea

Listing Price: $4,849.38
Sale Price: $3,549.73

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GGFJWG3RY
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 281 Series Power Take-Off, part number 281GGFJW-G3RY or 281GGFJWG3RY, is a hydraulically shifted hot-shift PTO built for automatic transmissions with a 10-bolt aperture, commonly Allison applications. The 281 Series is an evolution of the 280 Series platform, featuring a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and an 80% thicker clutch pack steel disc design to resist premature tooth wear. Nine speed ratios cover both low and high speed output needs. Rotatable cast iron flanges reduce interference clearance issues, and the Wet Spline Lubrication option extends shaft life by 7 to 10 times. Electronic Overspeed Control (EOC) and SmartStart are available for equipment protection and reduced startup shock. Typical markets include fire and rescue, refuse, pumper cleaner, and truck crane applications. Call us to confirm proper fit for your specific transmission and application.

Features

Hydraulic hot-shift (PowerShift) operation for 10-bolt automatic transmission apertures including Allison
Ductile iron bearing cap rated 117% stronger than gray iron predecessor
O-ring seal configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Clutch pack steel discs increased 80% in thickness to resist premature tooth wear
Nine speed ratios available including low and high speed outputs
Wet Spline Lubrication option provides 7 to 10 times greater shaft life
SmartStart feature reduces shock load at start-up; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: Hydraulic (PowerShift / Hot-Shift)
  • Compatible Transmission Manufacturer: Allison
  • Continuous Operation: Yes
  • Speed Ratios: Nine (including low and high speeds)
  • Lubrication Option: Wet Spline (W)
  • Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
  • Electronic Overspeed Control (EOC): Available
  • SmartStart: Available

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
