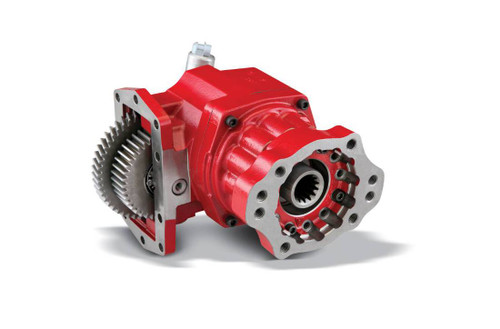

Chelsea PTO Assembly P/N: 281GPFJP-D8XD or 281GPFJPD8XD

281GPFJP-D8XD Chelsea PTO Assembly

Chelsea

Listing Price: $3,905.83
Sale Price: $2,859.05

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GPFJPD8XD
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 281 Series Power Take-Off (part 281GPFJP-D8XD or 281GPFJPD8XD) is a hydraulically shifted, hot-shift PTO built for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar units. The 281 Series is an evolution of the widely used 280 Series, featuring a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and an enhanced clutch pack with steel discs that are 80% thicker to resist premature wear. Nine speed ratios cover both low and high speed applications. Markets served include fire and rescue, refuse, truck cranes, and pumper cleaner equipment. Call us to confirm proper fit for your application.

Features

10-bolt mounting for Allison and Caterpillar automatic transmissions
Hydraulic PowerShift (hot-shift) operation for engagement under load
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing between housing and bearing cap improves clamp load and resists vibration
Enhanced clutch pack with 80% thicker steel discs to reduce premature tooth wear
Nine speed ratios available, including low and high speeds
Wet Spline Lubrication option extends shaft life 7 to 10 times
Electronic Overspeed Control (EOC) protects driven equipment
SmartStart feature reduces shock load at start-up for select applications
Positive Stop for driveline outputs eliminates oil seal damage from coupling

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: Hydraulic (PowerShift / Hot-Shift)
  • Continuous Operation: Yes
  • Compatible Transmission Manufacturer: Allison
  • Number of Speed Ratios: 9 (includes low and high)
  • Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
  • Lubrication: Pressure Lube or Wet Spline option
  • Bearing Cap Material: Ductile Iron
  • Electronic Overspeed Control (EOC): Included

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
