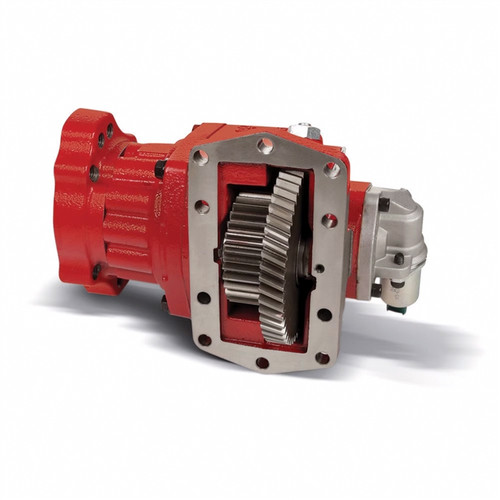

281GPFJP-G3XV Chelsea PTO Assembly

The Chelsea 281 Series Power Take-Off, part number 281GPFJP-G3XV or 281GPFJPG3XV, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar transmissions. An evolution of the 280 Series, the 281 Series delivers a single continuous-duty torque rating and nine speed ratios covering both low and high ranges. The ductile iron bearing cap is 117% stronger than gray iron, and an o-ring sealing configuration between the housing and bearing cap improves clamp load while reducing vibrational effects. The clutch pack features steel disks 80% thicker than the previous design to resist premature tooth wear. Rotatable cast-iron flanges minimize pump clearance interference. A Wet Spline Lubrication option extends shaft life by 7 to 10 times. SmartStart reduces shock load at engagement, and Electronic Overspeed Control (EOC) protects driven equipment. Common applications include fire and rescue, truck cranes, pumper cleaners, and refuse vehicles. Call us to confirm proper fit for your transmission and application.

Features

Chelsea 281 Series hydraulic hot-shift (PowerShift) PTO - 10-bolt mounting for Allison and Caterpillar automatic transmissions
Ductile iron bearing cap - 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap for improved clamp load and reduced vibration sensitivity
Enhanced clutch pack with steel disks 80% thicker than previous design to resist premature tooth wear
Nine speed ratios including low and high speeds; single continuous-duty torque rating
Wet Spline Lubrication option provides 7 to 10 times greater shaft life; SmartStart reduces shock load at engagement; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

• Mounting Type: 10-Bolt
• Shift Type: PowerShift (Hydraulic)
• Transmission Application: Allison and Caterpillar automatic transmissions
• Continuous Torque: 390 lb-ft (529 Nm) - see application pages for actual ratings
• Intermittent Torque: 301 to 400 lb-ft (501+ Nm)
• Output Power: 56+ HP (51+ kW)
• Shaft Power: 37 HP at 500 RPM / 74 HP at 1000 RPM (28 kW at 500 RPM / 55 kW at 1000 RPM)
• Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
• Output Shaft Options: SmartStart Round Shaft (1-1/4 in. with 5/16 in. key), 3/4 in. 11T Pump Spline, SAE B 7/8 in. 13T Pump Spline, SAE C 1-1/4 in. 14T Pump Spline, DIN 5462 Pump Spline, 1410 Companion Flange, DIN 120 Flange, DIN 100 Flange
• Lubrication Options: Pressure Lube (P), Wet Spline (W)
• Continuous Operation: Yes
• Speed Ratios: Nine (including low and high)

Additional Information

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
