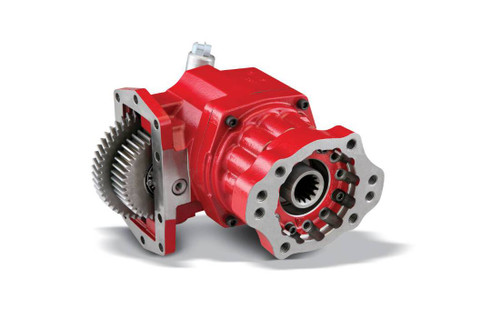

The Chelsea 281 Series Power Take-Off (PTO) Assembly, part number 281GTFJP-D8XV or 281GTFJPD8XV, is a hydraulically shifted hot-shift PTO designed for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar units. It delivers a single continuous duty torque rating and offers nine speed ratios covering both low and high ranges. The cast-iron flanges are rotatable to reduce interference clearance issues, and the ductile iron bearing cap is 117% stronger than gray iron. An o-ring sealing configuration between the housing and bearing cap improves clamp load and reduces vibrational effects from modern engine designs. The clutch pack features steel disks 80% thicker than the predecessor 280 Series to resist premature tooth wear. Wet Spline Lubrication provides 7 to 10 times greater shaft life, and the SmartStart feature reduces shock load at start-up. Electronic Overspeed Control (EOC) protects driven equipment. Call us to confirm proper fit for your application.
Features
Ductile Iron Bearing Cap - 117% stronger than gray iron compared to the predecessor 280 Series
Enhanced Clutch Pack - steel disks 80% thicker to resist premature tooth wear
O-ring sealing configuration between housing and bearing cap for improved clamp load and reduced vibrational effects
Nine speed ratios including low and high-speed ranges
Wet Spline Lubrication option provides 7 to 10 times greater shaft life
Electronic Overspeed Control (EOC) protects driven equipment; SmartStart reduces shock load at start-up
Tech Specs
- Mounting Type: 10-Bolt aperture (Allison and Caterpillar automatic transmissions)
- Shift Type: PowerShift (Hydraulic hot-shift)
- Continuous Operation: Yes
- Continuous Torque: 390 lb-ft (529 Nm) - verify actual rating on application page
- Intermittent Torque: 301 to 400 lb-ft (501+ Nm)
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 37 HP at 500 RPM, 74 HP at 1000 RPM
- Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
- Output Shaft Options: SmartStart Round Shaft (1-1/4" - 5/16" Key), 3/4" 11-tooth Pump Spline, SAE B 7/8" 13-tooth Pump Spline, SAE C 1-1/4" 14-tooth Pump Spline, DIN 5462 Pump Spline, 1410 Companion Flange, DIN 120 Flange, DIN 100 Flange
- Lubricant Options: Pressure Lube (P), Wet Spline (W)
- Typical Markets: Fire and Rescue, Truck Cranes, Pumper Cleaner, Refuse
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
