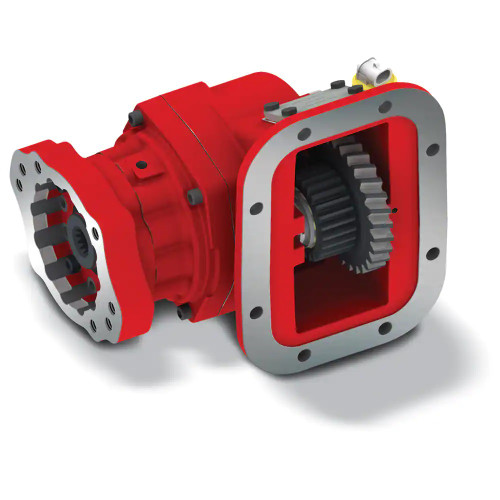

The Chelsea 282GDAJX-A3RK is a 282 Series Power Take-Off assembly, part of Chelsea's medium-duty hot shift PTO line. The 282 Series mounts via an 8-bolt pattern and supports pneumatic or hydraulic (PowerShift) shift. Intermittent torque capability reaches 201-300 lb-ft (401-500 Nm), with shaft power rated at 29 HP at 500 RPM and 57 HP at 1,000 RPM. Output shaft options in the 282 Series include a 1-1/4" round shaft with 5/16" key and a 1" round shaft with 1/4" key. Common applications for this series include aerial, construction equipment, water trucks, towing and recovery, and fuel oil delivery. Also referenced as 282GDAJXA3RK. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO assembly
8-bolt mounting pattern
Pneumatic or hydraulic (PowerShift) shift
Intermittent torque: 201-300 lb-ft (401-500 Nm)
Shaft power: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Wet-Spline option for extended PTO and pump shaft service life
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or PowerShift (Pneumatic/Hydraulic)
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Shaft Power: 29 HP (500 RPM), 57 HP (1,000 RPM)
- Shaft Power (metric): 21 kW (500 RPM), 43 kW (1,000 RPM)
- Output Shaft Option: 1-1/4" round shaft with 5/16" key
- Output Shaft Option: 1" round shaft with 1/4" key
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
