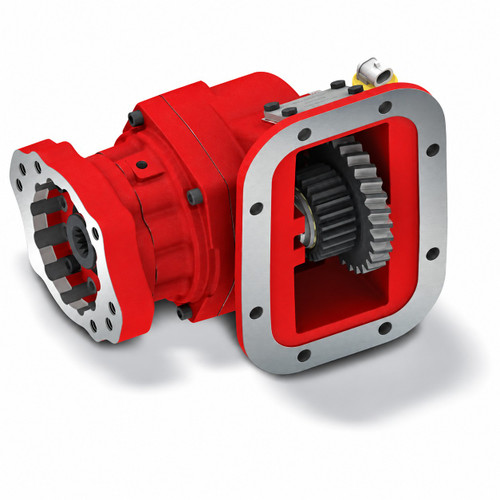

The Chelsea 282GDAJX-P3RF is a genuine 282 Series Power Take-Off assembly with an 8-bolt mounting configuration. The 282 Series is Chelsea's medium-duty hot-shift PTO line, available with pneumatic or hydraulic (PowerShift) shift and rated for intermittent torque from 201 to 300 lb-ft. Output shaft options across the series include a 1-1/4" round shaft with 5/16" key and a 1" round shaft with 1/4" key. Shaft power ratings for the series reach 57 HP at 1,000 RPM. Common applications include aerial equipment, towing and recovery, construction equipment, water trucks, and home fuel-oil delivery trucks. The part number is also referenced as 282GDAJXP3RF. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 282 Series medium-duty hot-shift PTO
8-bolt mounting configuration
Pneumatic or hydraulic (PowerShift) shift options
Intermittent torque rating: 201-300 lb-ft (401-500 Nm)
Shaft power up to 57 HP at 1,000 RPM
Suited for aerial, towing and recovery, construction, water truck, and fuel-oil delivery applications
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or Hydraulic (PowerShift)
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Output Shaft Options (series): 1-1/4" Round Shaft with 5/16" Key; 1" Round Shaft with 1/4" Key
- Shaft Power: 29 HP at 500 RPM; 57 HP at 1,000 RPM
- Alternate Part Number: 282GDAJXP3RF
Additional Information
Parts manual and diagrams: Chelsea 282 Series PTO parts list with prices
