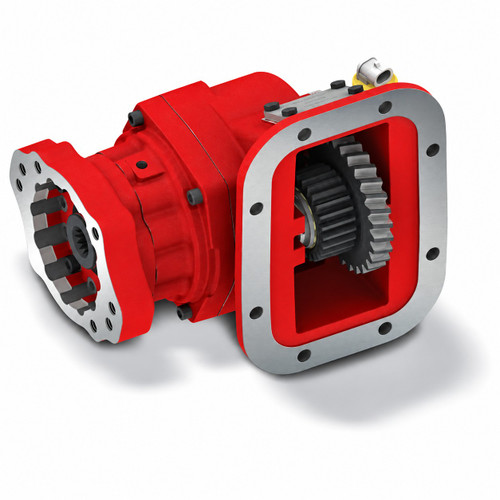

The Chelsea 282GGAJX-13XR or 282GGAJX13XR is a medium-duty hot shift power take-off assembly from the Chelsea 282 Series. The 282 Series uses an 8-bolt mounting configuration and is available with pneumatic or hydraulic (PowerShift) shift. The series supports up to 300 lb-ft of intermittent torque and carries continuous-duty torque ratings as well. Output shaft options within the 282 Series include a 1-1/4 in. round shaft with a 5/16 in. key and a 1 in. round shaft with a 1/4 in. key. Common applications for the 282 Series include aerial equipment, construction equipment, towing and recovery, water trucks, and fuel oil delivery trucks. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 282 Series medium-duty hot shift PTO assembly
8-bolt mounting configuration
Pneumatic or hydraulic (PowerShift) shift options
Up to 300 lb-ft intermittent torque rating
Round shaft output: 1-1/4 in. with 5/16 in. key, or 1 in. with 1/4 in. key
Suited for aerial, construction, towing and recovery, water truck, and fuel oil delivery applications
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
