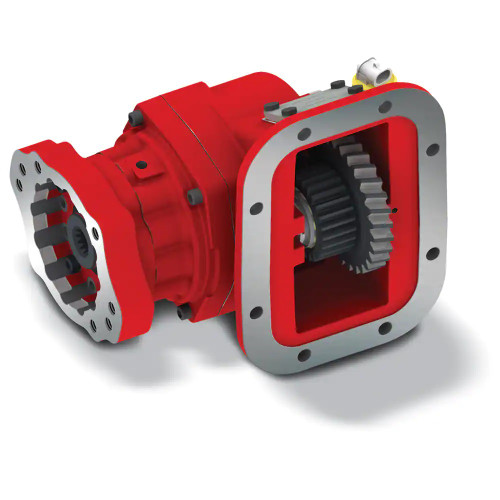

The Chelsea 282GGAJX-A3XD or 282GGAJXA3XD is an 8-bolt, pneumatic-shift Power Take-Off assembly from the Chelsea 282 Series. The 282 Series is a medium-duty hot-shift PTO designed for intermittent torque up to 300 lb-ft (401-500 Nm), with output shaft options including a 1-1/4" round shaft with 5/16" key or a 1" round shaft with 1/4" key. Shaft power is rated at 29 HP at 500 RPM and 57 HP at 1,000 RPM. Common applications for the 282 Series include aerial, construction equipment, towing and recovery, water trucks, and fuel oil delivery. Pro Gear and Transmission is your source for genuine Chelsea PTO components. Call us to confirm proper fit for your application.
Features
8-bolt mounting configuration
Pneumatic (air) shift operation
Intermittent torque rating: 201-300 lb-ft (401-500 Nm)
Shaft power: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Output shaft options: 1-1/4" round with 5/16" key or 1" round with 1/4" key
Suited for aerial, construction, towing and recovery, water truck, and fuel oil delivery applications
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic (Air Shift)
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Shaft Power: 29 HP (500 RPM), 57 HP (1,000 RPM)
- Output Shaft Type: 1-1/4" Round Shaft with 5/16" Key; 1" Round Shaft with 1/4" Key
- Lubricant Code X: Standard Lube
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
