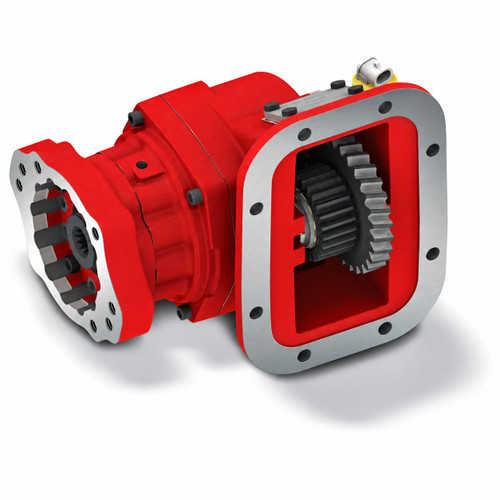

The Chelsea 282GPAJX-A3RF or 282GPAJXA3RF is a medium-duty hot shift Power Take-Off assembly from the Chelsea 282 Series. The 282 Series supports intermittent torque from 201 to 300 lb-ft and mounts via an 8-bolt pattern. Shift options include pneumatic or PowerShift (pneumatic/hydraulic), giving this series 18 shift configurations across 9 available speed ratios. Direct-mount and driveshaft output configurations are supported, with optional Wet-Spline technology for extended PTO and pump shaft service life. Typical applications include aerial equipment, construction machinery, towing and recovery, water trucks, and fuel oil delivery. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 282 Series medium-duty hot shift PTO assembly
8-bolt mounting pattern
Pneumatic or PowerShift (pneumatic/hydraulic) shift options
Intermittent torque: 201 to 300 lb-ft (401 to 500 Nm)
9 speed ratios across 18 shift configurations
Wet-Spline option available for extended PTO and pump shaft life
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or PowerShift (Pneumatic/Hydraulic)
- Intermittent Torque: 201 to 300 lb-ft (401 to 500 Nm)
- Output Shaft Types: Round Shaft 1-1/4 in. with 5/16 in. key; Round Shaft 1 in. with 1/4 in. key
- Speed Ratios: 9 available
- Shift Configurations: 18 available
- Output Power: 56+ HP (41 to 50 kW)
- Shaft Power: 29 HP at 500 RPM; 57 HP at 1000 RPM
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
