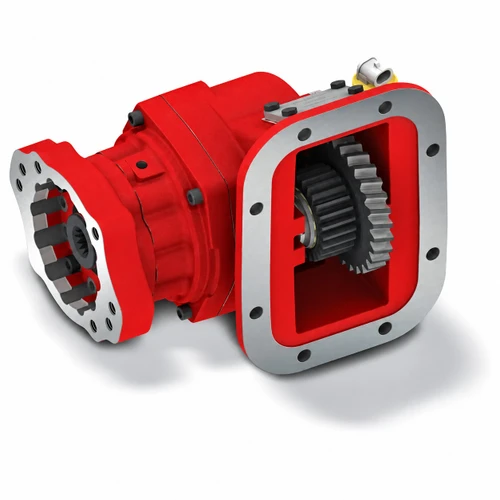

The Chelsea 282GPAJX-V3RF or 282GPAJXV3RF is a medium-duty hot shift Power Take-Off assembly from the Chelsea 282 Series. The 282 Series features an 8-bolt mounting pattern and is available with pneumatic or hydraulic (PowerShift) shift. Output shaft options within the series include a 1-1/4" round shaft with 5/16" key and a 1" round shaft with 1/4" key. The series is rated for intermittent torque of 201 to 300 lb-ft (401 to 500 Nm) and delivers up to 57 HP at 1,000 RPM. Typical applications include aerial, construction equipment, towing and recovery, water trucks, and fuel oil delivery. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO
8-bolt mounting pattern
Pneumatic or hydraulic (PowerShift) shift options
Intermittent torque rating: 201 to 300 lb-ft (401 to 500 Nm)
Output shaft: 1-1/4" round with 5/16" key or 1" round with 1/4" key (series options)
Suited for aerial, construction, towing and recovery, water truck, and fuel oil delivery applications
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
