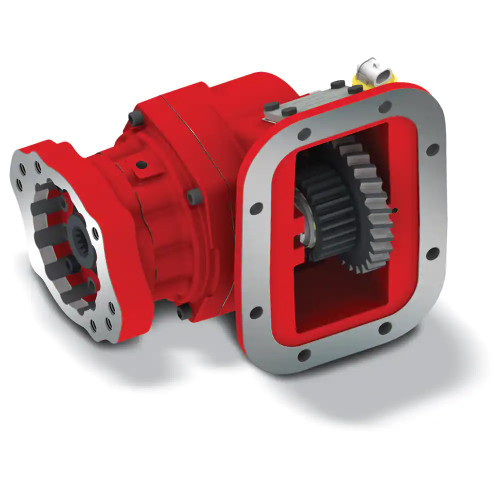

The Chelsea 282XCAJX-13BD or 282XCAJX13BD is a medium-duty hot shift Power Take-Off Assembly from the Chelsea 282 Series. This series mounts via an 8-bolt pattern and supports both pneumatic and hydraulic (PowerShift) shift operation. Intermittent torque capability for the 282 Series reaches up to 300 lb-ft, with shaft power rated at 29 HP at 500 RPM and 57 HP at 1,000 RPM. Output shaft options across the series include a 1-1/4" round shaft with 5/16" key and a 1" round shaft with 1/4" key. The 282 Series is applied across aerial, construction equipment, towing and recovery, water truck, and fuel oil delivery markets. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO
8-bolt mounting pattern
Pneumatic or hydraulic (PowerShift) shift operation
Intermittent torque up to 300 lb-ft for the 282 Series
Shaft power: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Suited for aerial, construction, towing and recovery, water truck, and fuel oil delivery applications
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
