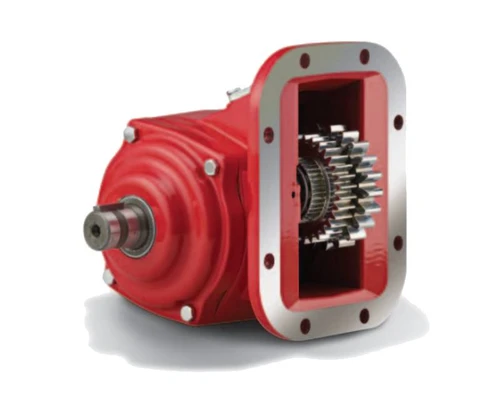

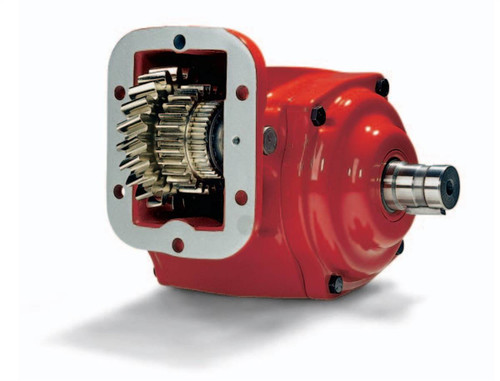

The Chelsea 282XMAJX-Q3XD or 282XMAJXQ3XD is a medium-duty hot-shift power take-off from the Chelsea 282 Series, designed for 8-bolt transmission mounting. It accepts pneumatic or PowerShift (pneumatic/hydraulic) engagement and delivers output through a 1-1/4" round shaft with a 5/16" key. Intermittent torque is rated at 201-300 lb-ft (401-500 Nm), with continuous torque up to 300 lb-ft (407 Nm) - check application pages for actual torque ratings for your specific installation. Shaft power runs 29 HP at 500 RPM and 57 HP at 1000 RPM. Compatible transmissions include Allison, Volvo/Mack, and Eaton/Fuller platforms. The 282 Series sees use in aerial, construction, towing and recovery, water truck, and fuel oil delivery applications. Call us to confirm proper fit for your transmission and chassis.
Features
8-Bolt mounting, compatible with Allison, Volvo/Mack, and Eaton/Fuller transmissions
1-1/4" round output shaft with 5/16" key
Pneumatic or PowerShift (pneumatic/hydraulic) shift with integral air valve
Continuous torque rating up to 300 lb-ft (407 Nm); intermittent torque 201-300 lb-ft (401-500 Nm)
Rotatable flanges for flexible installation
Optional Wet-Spline for extended PTO and pump shaft life; Smart Start option for high-torque engagement
Tech Specs
- Intermittent Torque: 201-300 lb-ft, 401-500 Nm
- Continuous Torque: 300 lb-ft, 407 Nm (check application pages for actual torque ratings)
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Shift Type: Pneumatic, PowerShift (Pneumatic/Hydraulic)
- Mounting Type: 8-Bolt
- Compatible Transmissions: Allison, Volvo/Mack, Eaton/Fuller, Other
- Output Power: 41-50 kW, 56+ HP
- Shaft Power: 29 HP / 21 kW at 500 RPM; 57 HP / 43 kW at 1000 RPM
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
