Chelsea PTO Assembly P/N: 282XPAJX-B3RK or 282XPAJXB3RK

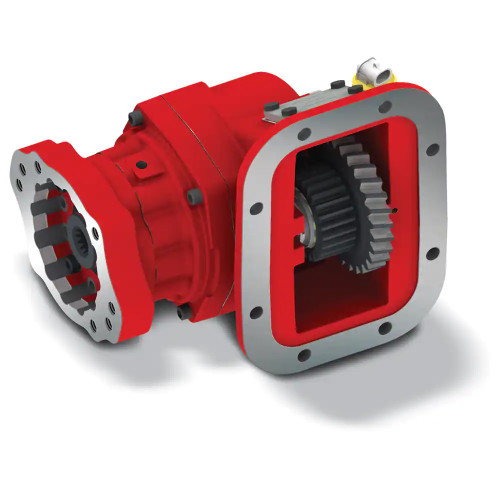

Stock photo not actual item

282XPAJX-B3RK Chelsea PTO Assembly

Chelsea

Listing Price: $6,614.16
Sale Price: $3,637.79

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL282XPAJXB3RK
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 282 Series Power Take-Off Assembly, part number 282XPAJX-B3RK or 282XPAJXB3RK, is an 8-bolt medium-duty hot-shift PTO designed for continuous-duty service. The 1-1/4" round output shaft uses a 5/16" key. Shift is pneumatic or PowerShift (pneumatic/hydraulic) with an integral air valve. Intermittent torque rating falls in the 201-300 lb-ft range; the series is rated for continuous torque up to 300 lb-ft - confirm actual ratings on the application pages for your installation. Shaft power output is 29 HP at 500 RPM and 57 HP at 1,000 RPM. Compatible transmission manufacturers include Allison, Volvo/Mack, and Eaton/Fuller. The 282 Series supports Wet-Spline technology for extended PTO and pump shaft life, plus a Smart Start option for high-torque start-up. Typical applications include aerial equipment, towing and recovery, construction equipment, water trucks, and fuel oil delivery. Available from Pro Gear and Transmission - call us to confirm proper fit for your application.

Features

8-Bolt mounting configuration
Air or hydraulic (PowerShift) shift with integral air valve
1-1/4" round output shaft with 5/16" key
Continuous torque up to 300 lb-ft; intermittent torque rated 201-300 lb-ft
Shaft power: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Wet-Spline option for extended PTO and pump shaft life; Smart Start option for high-torque start-up
Rotatable flanges; compatible with Allison, Volvo/Mack, and Eaton/Fuller transmissions

Tech Specs

  • Output Shaft Type: 1-1/4" Round with 5/16" Key
  • Mounting Type: 8-Bolt
  • Shift Type: Pneumatic or PowerShift (Pneumatic/Hydraulic)
  • Intermittent Torque: 201-300 lb-ft (401-500 Nm)
  • Continuous Torque: Up to 300 lb-ft / 407 Nm (check application pages for actual torque ratings)
  • Shaft Power: 29 HP / 21 kW at 500 RPM; 57 HP / 43 kW at 1,000 RPM
  • Output Power: 41-50 kW / 56+ HP
  • Compatible Transmissions: Allison, Volvo/Mack, Eaton/Fuller, and other makes

Additional Information

Chelsea 282 PTO Series model break down

Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
