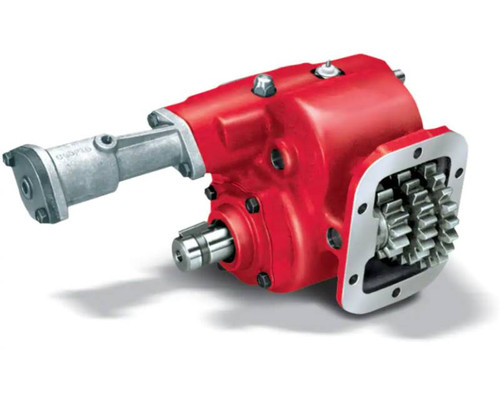

The Chelsea 340 Series Power Take-Off Assembly, part number 340SFABX-A5XD or 340SFABXA5XD, is a reversible, 6-bolt mechanical PTO built for vocational truck applications that demand both forward and reverse rotation. The lever-actuated mechanical shift operates on a 1-1/4" round output shaft with a 5/16" keyway. Intermittent torque rating reaches 200 lb-ft (271 Nm) - check application pages for your actual torque requirement. Shaft power output is 19 HP at 500 RPM and 38 HP at 1000 RPM. Compatible transmissions include Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other manual transmission families with a 6-bolt aperture. Typical applications include oil field and logging equipment. A genuine Chelsea part, available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Reversible 6-bolt mounting fits most manual transmissions with a 6-bolt aperture
Mechanical lever shift type for direct, positive engagement
1-1/4" round output shaft with 5/16" keyway for driveline connection
Intermittent torque up to 200 lb-ft (271 Nm) - verify actual rating for your application
Shaft power: 19 HP at 500 RPM, 38 HP at 1000 RPM (14 kW / 28 kW)
Rugged cast iron housing with heavy-duty ball bearing output and removable cover plate for backlash adjustment
Tech Specs
- Intermittent Torque: 200 lb-ft / 271 Nm (check application pages for actual torque rating)
- Mounting Type: Reversible, 6-Bolt
- Output Shaft Type: 1-1/4" Round with 5/16" key
- Output Power: 36-45 HP (21-30 kW)
- Shift Type: Lever, Mechanical
- Shaft Power: 19 HP at 500 RPM, 38 HP at 1000 RPM (14 kW at 500 RPM, 28 kW at 1000 RPM)
- Compatible Transmissions: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other 6-bolt manual transmissions
