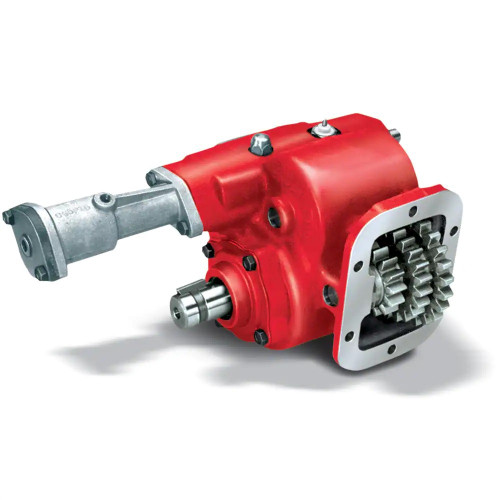

The Chelsea 340 Series Power Take-Off Assembly, part number 340SFABX-G5XD or 340SFABXG5XD, is built for vocational truck applications that demand forward and reverse PTO capability. The reversible 6-bolt mounting pattern fits most manual transmissions from Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and others. A 1-1/4" round output shaft with keyway delivers driveline power at up to 38 HP (1,000 RPM) intermittently, with a series intermittent torque rating up to 200 lb-ft (271 Nm), verify actual ratings for your specific application on the Chelsea application pages. Shift is lever-actuated, mechanical. The cast iron housing and ball bearing output are hallmarks of the 340 Series design. Call us to confirm proper fit for your transmission.
Features
Reversible 6-bolt mounting pattern fits most manual transmissions including Eaton/Fuller, Volvo/Mack, ZF, Hino, and GM
Lever-actuated mechanical shift for forward and reverse operation
1-1/4" round output shaft with keyway for driveline power delivery
Series intermittent torque rating up to 200 lb-ft (271 Nm), check application pages for your specific rating
Shaft power: 19 HP at 500 RPM, 38 HP at 1,000 RPM
Cast iron housing with ball bearing output and removable cover plate for backlash adjustment
Tech Specs
- Intermittent Torque: Up to 200 lb-ft (271 Nm), check application pages for actual torque ratings
- Mounting Type: Reversible, 6-bolt
- Output Shaft Type: 1-1/4" round with 5/16" key
- Output Power: 36-45 HP (21-30 kW)
- Shift Type: Lever, mechanical
- Compatible Transmission Manufacturers: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, Other
- Shaft Power: 19 HP (500 RPM), 38 HP (1,000 RPM) / 14 kW (500 RPM), 28 kW (1,000 RPM)
- Lubrication: No pressure lube (X designation)
- Continuous Operation: Yes, with 30% de-rating
