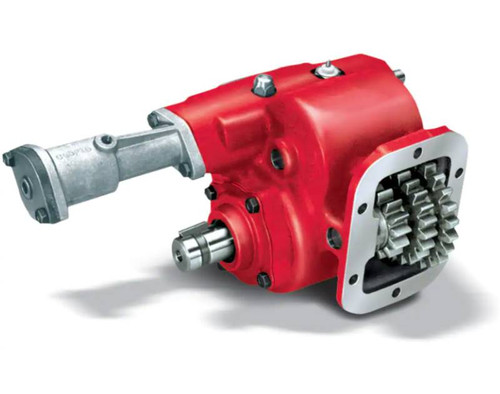

The Chelsea 340 Series Power Take-Off Assembly, part number 340XFDAX-G5XD or 340XFDAXG5XD, is a forward-and-reverse capable PTO designed for vocational truck applications including oil field and logging work. It mounts to most manual transmissions with a 6-bolt aperture from Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and others. The reversible mounting orientation gives installation flexibility. Shift is lever/mechanical, and the 1-1/4" round output shaft with key drives driveline-style loads. Intermittent torque rating reaches 200 lb-ft (271 Nm); shaft power is rated at 19 HP at 500 RPM and 38 HP at 1,000 RPM. Cast iron housing and a ball bearing output contribute to durability in demanding cycles. Confirm fitment for your specific transmission before ordering, or call us and we can help.
Features
Reversible, 6-bolt mounting fits most manual transmissions with a 6-bolt aperture
Lever/mechanical shift operation
1-1/4" round output shaft with key for driveline connection
Intermittent torque rating up to 200 lb-ft (271 Nm); check application pages for actual torque ratings
Shaft power: 19 HP at 500 RPM, 38 HP at 1,000 RPM
Rugged cast iron housing with ball bearing output and removable cover plate for backlash adjustment
Tech Specs
- Intermittent Torque: Up to 200 lb-ft (271 Nm) - check application pages for actual torque ratings
- Mounting Type: Reversible, 6-Bolt
- Output Shaft Type: 1-1/4" Round with key
- Output Power: 36-45 HP (21-30 kW)
- Shift Type: Lever, Mechanical
- Shaft Power: 19 HP at 500 RPM, 38 HP at 1,000 RPM (14 kW at 500 RPM, 28 kW at 1,000 RPM)
- Compatible Transmission Manufacturers: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, Other
- Continuous Operation: Yes, with 30% de-rating
