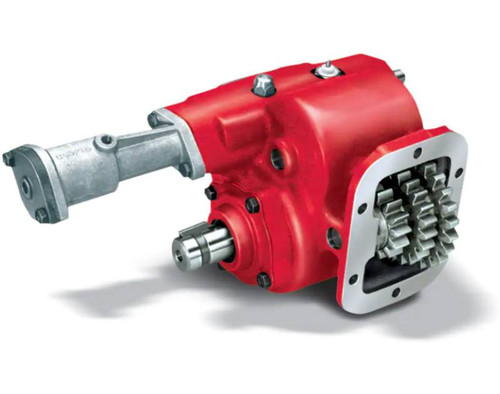

The Chelsea 340 Series Power Take-Off, part number 340SFDAX-G5XD or 340SFDAXG5XD, is a reversible 6-bolt PTO designed for vocational truck applications that require both forward and reverse rotation. It mounts to manual transmissions from Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, and other manufacturers with a 6-bolt aperture. The mechanical lever shift operates a 1-1/4" round output shaft with keyway. Intermittent torque rating reaches 200 lb-ft (271 Nm); check the Chelsea application pages for your specific transmission. Shaft power is rated at 19 HP at 500 RPM and 38 HP at 1000 RPM. The cast iron housing with ball bearing output suits oil field, logging, and on-highway winch applications. Call us to confirm proper fit for your transmission.
Features
Reversible 6-bolt mounting fits most manual transmissions with 6-bolt aperture
Mechanical lever shift with 1-1/4" round output shaft with keyway
Intermittent torque up to 200 lb-ft (271 Nm); verify rating against Chelsea application pages for your transmission
Shaft power: 19 HP at 500 RPM, 38 HP at 1000 RPM (14 kW at 500 RPM, 28 kW at 1000 RPM)
Ball bearing output for extended service life
Removable cover plate allows backlash adjustment in the field
Rugged cast iron housing suited for oil field, logging, and on-highway use
Tech Specs
- Intermittent Torque: 200 lb-ft / 271 Nm (check Chelsea application pages for your transmission's actual rating)
- Mounting Type: Reversible, 6-Bolt
- Output Shaft Type: 1-1/4" Round with 5/16" key
- Output Power: 36-45 HP / 21-30 kW
- Shift Type: Lever, Mechanical
- Shaft Power: 19 HP at 500 RPM, 38 HP at 1000 RPM / 14 kW at 500 RPM, 28 kW at 1000 RPM
- Compatible Transmission Manufacturers: Eaton/Fuller, Volvo/Mack, ZF, Hino, GM, Other
- Continuous Operation: Yes, with 30% de-rating
