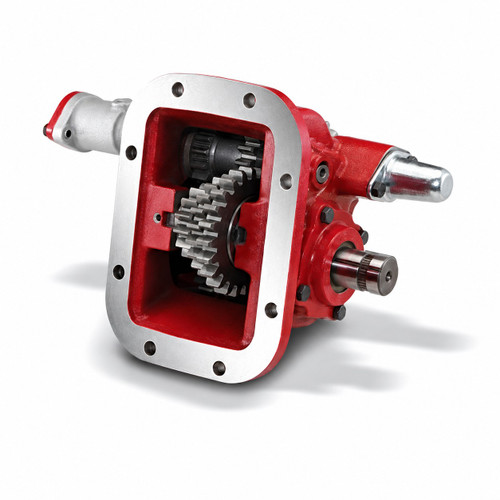

The Chelsea 348XFAHX-V5XD or 348XFAHXV5XD is a Power Take-Off assembly designed for 8-bolt transmission mounting on Eaton/Fuller, Volvo/Mack, and other compatible transmissions. It uses a wire/cable mechanical shift and delivers up to 200 lb-ft (271 Nm) intermittent torque, with shaft power rated at 19 HP at 500 RPM and 38 HP at 1,000 RPM. Output is through a 1-1/4" round shaft (keyed version available). The unit features a ball bearing output, a removable cover plate for backlash adjustment, and a single low-speed forward and reverse configuration. Call us to confirm proper fit for your specific transmission and application.
Features
8-bolt mounting configuration for Eaton/Fuller, Volvo/Mack, and other compatible transmissions
Wire/cable mechanical shift operation
1-1/4" round output shaft (keyed version also available)
Up to 200 lb-ft (271 Nm) intermittent torque rating
Ball bearing output for smooth power transfer
Removable cover plate allows backlash adjustment in the field
Tech Specs
- Intermittent Torque: 200 lb-ft / 271 Nm (verify actual rating on application pages)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 36-45 HP / 21-30 kW
- Shaft Power: 19 HP (14 kW) at 500 RPM; 38 HP (28 kW) at 1,000 RPM
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, Other
- Output Shaft Type: 1-1/4" Round; 1-1/4" Round with Key
- Mounting Type: 8-Bolt
Additional Information
Parts manual and diagrams: Chelsea 348 Series PTO parts list with prices
