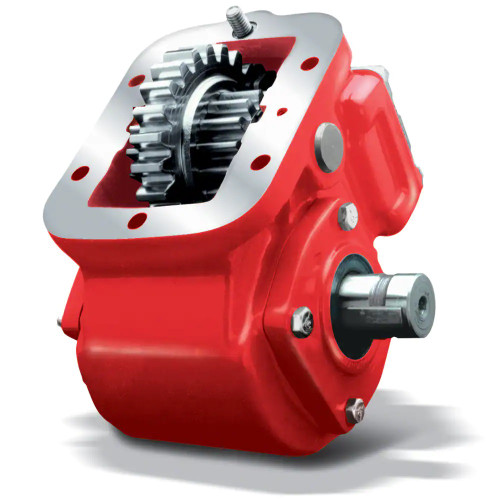

The Chelsea 442 Series Power Take-Off Assembly, part number 442GFHVP-W5RF or 442GFHVPW5RF, is a 6-bolt mount PTO configured with air shift actuation and a 0.391:1 gear ratio. The output is a 1-1/4" round standard shaft, and the unit mounts via a standard configuration with metric studs. This assembly runs without pressure lubrication and carries the cast iron housing and tapered cone bearings characteristic of the 442 Series, making it a fit for light-to-medium duty vocational work including service trucks, dump trucks, and tow and recovery vehicles. The 360-degree rotatable output flange aids installation clearance, and the greaseable output shaft supports long service intervals. Call us to confirm proper fit for your specific transmission and application.
Features
442 Series, 6-bolt transmission mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft, no pressure lubrication required
Cast iron housing with tapered cone bearings for extended service life
Rotatable output flange and greaseable output shaft for installation flexibility and long service intervals
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
