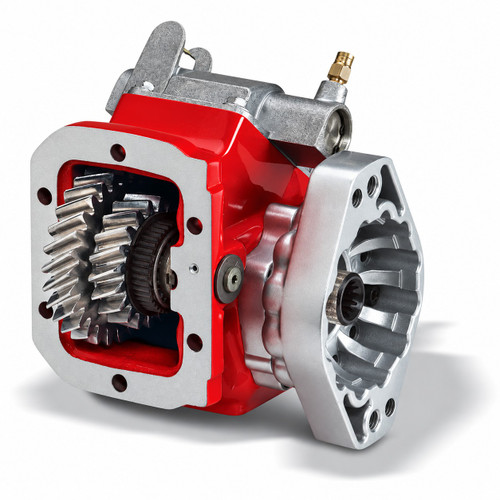

The Chelsea 442 Series Power Take-Off, part number 442GRJAX-A3RB or 442GRJAXA3RB, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit uses air shift actuation and a rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft. Mounting uses the standard configuration with metric studs. The housing is cast iron with tapered cone bearings on the output shaft for extended service life. No pressure lube is required for this assembly. The 442 Series supports up to 36 output options across the family, including Chelsea's 360-degree rotatable flange design. Call us to confirm proper fit for your specific transmission.
Features
442 Series, 6-bolt transmission mount with metric studs
Air shift actuation
Rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft, no pressure lube required
Cast iron housing with tapered cone bearings for long service life
Rotatable output flanges
Tech Specs
- Product Series: 442
- Mounting Option: Standard Mount with Metric Studs (G)
- Gear Ratio Code: R (22/24)
- Input Gear Designator: JA
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 3
- Output Option: Rotatable SAE B 4-Bolt Flange, SAE B Shaft (7/8" 13T) (RB)
Equivalent PTOs:
- BezaresPT1000XJN661RAView and buy
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
