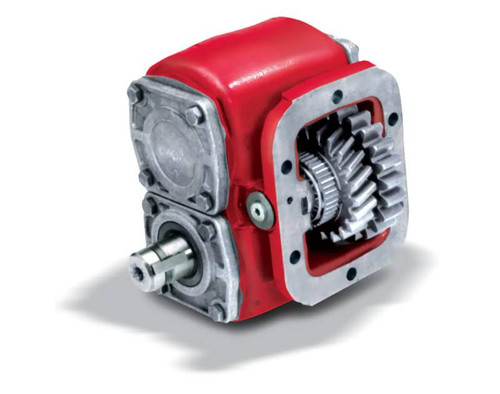

The Chelsea 442 Series Power Take-Off Assembly, part number 442GUJHX-A4XD or 442GUJHXA4XD, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit runs a 0.391:1 gear ratio with air shift actuation and a 1-1/4" round standard output shaft. Mounting is standard with metric studs. Lubrication is no-pressure lube. The cast iron housing and tapered cone bearings on the output shaft are characteristic of the 442 Series, which offers intermittent torque ratings of 250 lb-ft and output power up to 55 HP. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series, 6-bolt standard mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on output shaft
Greaseable output shafts; rotatable output flanges for improved clearance
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Shaft: 1-1/4" Round Standard Shaft
- Lubricant: No Pressure Lube
- Input Gear Designator: AH
- Assembly: 3
