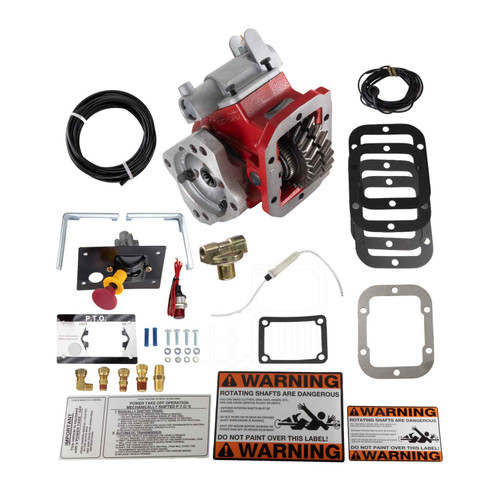

The Chelsea 442 Series Power Take-Off, part number 442KLJKX-A5XK or 442KLJKXA5XK, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit runs a 0.391:1 gear ratio with air shift actuation and a 1-1/4" round standard output shaft. Mounting is via the standard configuration with metric studs. The unit operates without a pressure lube system. Tapered cone bearings on the output shaft and a cast iron housing are characteristic of the 442 Series design. Cross-references include 1450-442KLJKXA5XK and CHL442KLJKXA5XK. Call us to confirm proper fit for your transmission application.
Features
442 Series 6-bolt mount with metric studs, air shift actuation
0.391:1 gear ratio, no pressure lube system
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on the output shaft
Low-profile shift cover and rotatable output flanges for improved clearance
Greaseable output shafts
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Lubricant: No Pressure Lube
- Input Gear Designator: AH
- Assembly: 3
