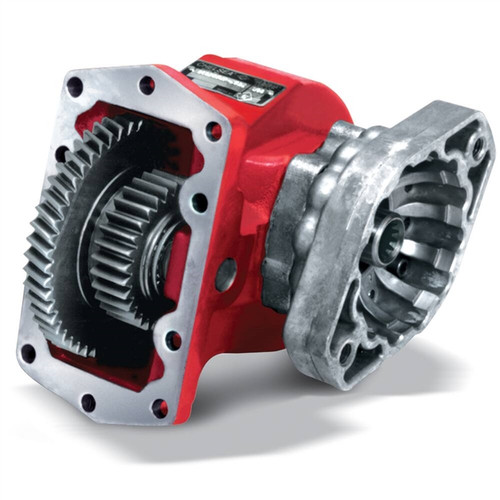

Chelsea 442 Series Power Take-Off Assembly, part number 442XBAHP-M5AK or 442XBAHPM5AK, is an air-shift PTO built on a 6-bolt standard mount with metric studs. The gear ratio is 0.391:1, and the output is a 1-1/4" round standard shaft. This unit runs without pressure lubrication (dry-sump configuration) and carries an Assembly 3 build designation. The cast iron housing and tapered cone bearings on the output shaft are standard to the 442 Series, suited for service trucks, dump trucks, tow trucks, and light-to-medium duty vocational applications. Call us to confirm proper fit for your transmission and application.
Features
Chelsea 442 Series, 6-bolt standard mount with metric studs
Air shift activation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on the output shaft
Greaseable output shaft, no pressure lubrication required
Low-profile shift cover with 360-degree rotatable output flange option for clearance
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Input Gear Designator: AH
- Assembly: 3
- Lubricant: No Pressure Lube
