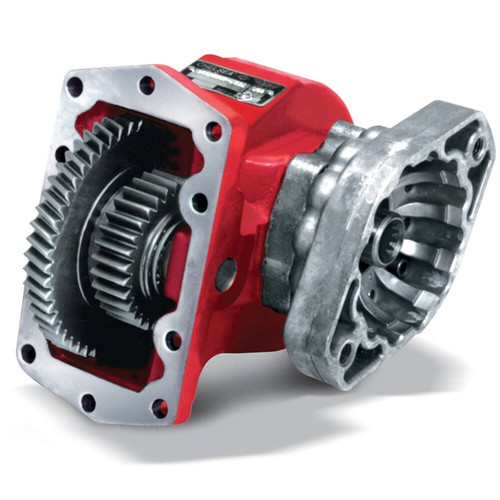

The Chelsea 442 Series Power Take-Off, part number 442XFAHX-M3XE or 442XFAHXM3XE, is a 6-bolt mounting PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit carries a 0.391:1 gear ratio with air shift engagement, a 1-1/4" round standard output shaft, and standard mount with metric studs. The cast iron housing and tapered cone bearings on the output shaft deliver the torque capacity and service life the 442 Series is known for. Lubrication is handled without a pressure lube system. Call us to confirm proper fit for your transmission application.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift engagement
0.391:1 gear ratio
1-1/4" round standard output shaft, no pressure lube required
Cast iron housing with tapered cone bearings on the output shaft
Low-profile shift cover and rotatable output flanges for installation clearance
Greaseable output shafts
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Input Gear Designator: AH
- Assembly: 3
- Lubricant: No Pressure Lube
